Product Summary

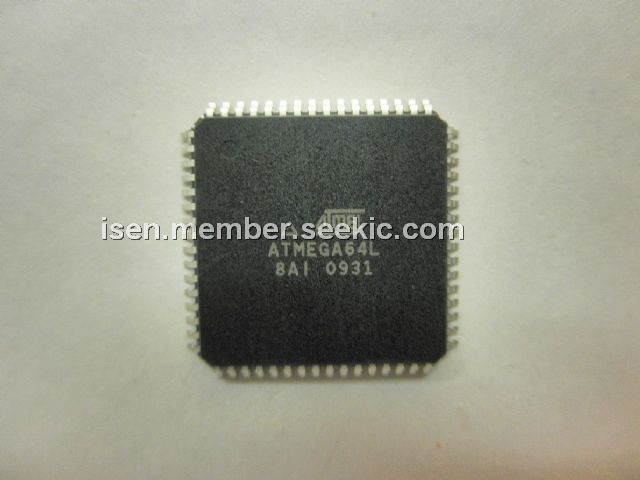

The ATMEGA64L-8AI is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA64L-8AI achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATMEGA64L-8AI absolute maximum ratings: (1)Operating Temperature: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -1.0V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -1.0V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current V and GND Pins: 200.0 mA.

Features

ATMEGA64L-8AI features: (1)High-performance, Low-power AVR 8-bit Microcontroller; (2)130 Powerful Instructions – Most Single Clock Cycle Execution; (3)32 x 8 General Purpose Working Registers + Peripheral Control Registers; (4)Fully Static Operation; (5)Up to 16 MIPS Throughput at 16 MHz; (6)On-chip 2-cycle Multiplier; (7)Non-volatile Program and Data Memories 64K Bytes of In-System Reprogrammable Flash Endurance: 10,000 Write/Erase Cycles; (8)Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip Boot Program True Read-While-Write Operation; (9)2K Bytes EEPROM Endurance: 100,000 Write/Erase Cycles; (10)4K Bytes Internal SRAM; (11)Up to 64K Bytes Optional External Memory Space; (12)Programming Lock for Software Security; (13)SPI Interface for In-System Programming; (14)JTAG (IEEE std. 1149.1 Compliant) Interface; (15)Boundary-scan Capabilities According to the JTAG Standard; (16)Extensive On-chip Debug Support; (17)Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface; (18)Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes; (19)Two Expanded 16-bit Timer/Counters with Separate Prescaler, Compare Mode, and Capture Mode; (20)Real Time Counter with Separate Oscillator; (21)Two 8-bit PWM Channels; (22)6 PWM Channels with Programmable Resolution from 1 to 16 Bits; (23)8-channel, 10-bit ADC; (24)8 Single-ended Channels; (25)7 Differential Channels; (26)2 Differential Channels with Programmable Gain (1x, 10x, 200x): Byte-oriented Two-wire Serial Interface; (27)Dual Programmable Serial USARTs; (28)Master/Slave SPI Serial Interface; (29)Programmable Watchdog Timer with On-chip Oscillator; (30)On-chip Analog Comparator; (31)Power-on Reset and Programmable Brown-out Detection; (32)Internal Calibrated RC Oscillator; (33)External and Internal Interrupt Sources; (34)Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby; (35)Software Selectable Clock Frequency; (36)ATmega103 Compatibility Mode Selected by a Fuse; (37)Global Pull-up Disable; (38)I/O and Packages; (39)53 Programmable I/O Lines; (40)64-lead TQFP and 64-pad MLF; (41)Operating Voltages: 2.7 - 5.5V; (42)Speed Grades: 0 - 8 MHz.

Diagrams

ATMEGA64L-8AI block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ATMEGA64L-8AI
ATMEGA64L-8AI

Atmel

8-bit Microcontrollers (MCU) AVR 64K FLASH 2KB EE 4K SRAM ADC 3V

Data Sheet

Negotiable
