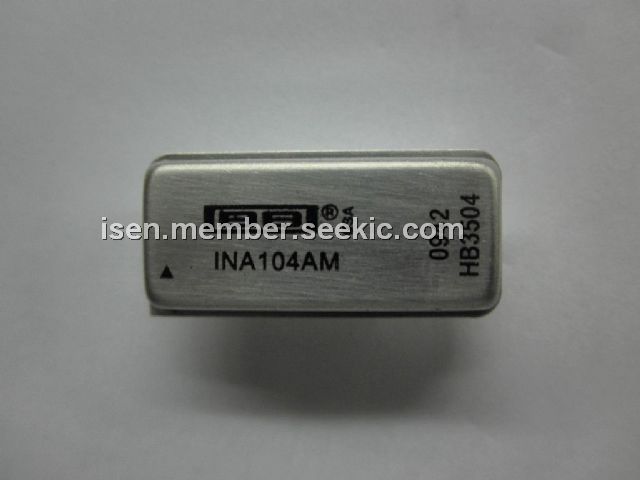

Product Summary

The INA104AM is a high accuracy, multistage, integrated-circuit instrumentation amplifier designed for signal conditioning requirements where very high performance is desired. A multiamplifier, monolithic design, which uses Burr-Browns ultra-low drift, low-noise technology, provides the highest performance with maximum versatility at the lowest cost and makes the INA104AM ideal for even high volume applications. Burr-Browns compatible thin-film resistors and lasertrimming techniques are used for minimizing offset voltage and temperature drift. This advanced technique also maximizes common-mode rejection and gain accuracy. The INA104AM also contains a fourth operational amplifier, specified separately, which can conveniently be used for some important applications such as single capacitor active low-pass filtering, easy output level shifting, common-mode voltage active guard drive, and increased gain (x 10,000 and greater).

Parametrics

INA104AM absolute maximum ratings: (1)Supply: ±20V; (2)Internal Power Dissipation: 980mW; (3)Input Voltage Range: ±VCC; (4)Output Short-Circuit (to ground): Continuous; (5)Operating Temperature: –40℃ to +125℃; (6)Storage Temperature: –40℃ to +125℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

INA104AM features: (1)versatile four op amp design; (2)ultra-low voltage drift: 0.25mV/℃, max; (3)low offset voltage: 25mV, max; (4)low nonlinearity: 0.002%, max; (5)low noise: 13nV/Hz at f0 = 1kHz; (6)high cmr: 106dB at 60Hz, min; (7)high input impedance: 1010w; (8)low cost.

Diagrams

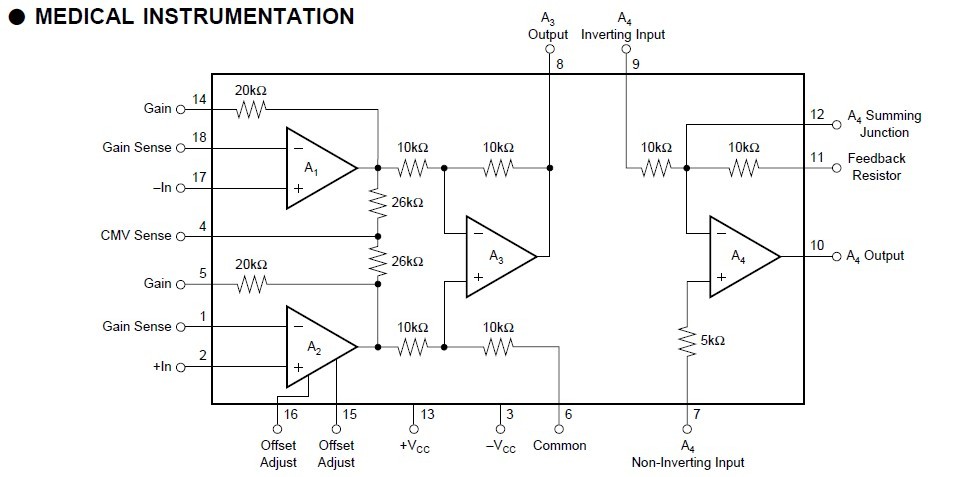

INA104AM block diagram
