Product Summary

The TEESVA0J476M8R is a 6.3V Tantalum Capacitor. The applications of it include Industrial, commercial and entertainment products (recommend to replace with conventional R or SV/S series).

Parametrics

TEESVA0J476M8R general specifications: (1)Capacitance:47uF; (2)Rated Voltage:6.3V; (3)Case Code:A Case; (4)Capacitance Tolerance:±20%; (5)Operating Temperature Range:-55℃ to +125℃; (6)Brand Name:NEC; (7)Mounting Type:SMD(Surface-Mounted Device); (8)Standard-type , E/SV Series; (9)Lead-Free Type; (10)RoHS Compliant; (11)Packing:2,000 units / reel; (12)SMD Tantalum Capacitor Mass Stock.

Features

TEESVA0J476M8R features: (1)Lead-free Type. RoHS Compliant; (2)Offer a range of small, high-capacity models; (3)Succeed to the latest technology plus outstanding peformance.

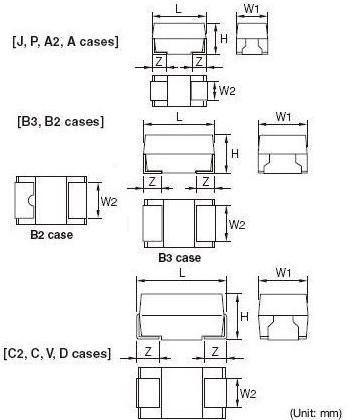

Diagrams
