TLE6232GP

Six Channel, Low-Side Switch, 36-BSSOP, 4.5 V ~ 5.5 V, 550mA, SPI, RoHS Compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: TLE6232GP

Brand:: Infineon Technologies AG - Infineon | Pack: SSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-05

From Other Seller

Part Number:TLE6232GP
US $0.10 - 0.50
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

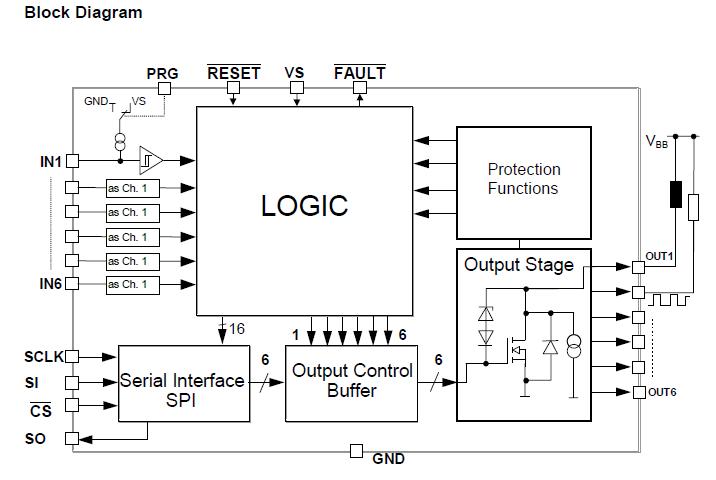

The TLE6232GP is a Six Channel Low-Side Switch in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and six open drain DMOS output stages. The TLE6232GP is protected by embedded protection functions and designed for automotive and industrial applications. The output stages are controlled via an SPI Interface. Additionally all six channels can be controlled direct in parallel for PWM applications. Therefore the TLE6232GP is particularly suitable for engine management and powertrain systems. The applications of the TLE6232GP include μC Compatible Power Switch for 12 V and 24V Applications, Switch for Automotive and Industrial System, Solenoids, Relays and Resistive Loads and Robotic Controls.

Parametrics

TLE6232GP absolute maximum ratings: (1)Supply Voltage, VS: -0.3 to +7 V; (2)Continuous Drain Source Voltage (OUT1...OUT8), VDS: 45 V; (3)Input Voltage, All Inputs and Data Lines, VIN: - 0.3 to + 7 V; (4)Operating Temperature Range, TJ: -40 to 150℃; (5)Storage Temperature Range, Tstg: -55 to 150℃; (6)Output Current per Channel (see el. characteristics), ID(lim): ID(lim) min; (7)Single pulse inductive Energy (internal clamping), E: 40mJ; (8)Power Dissipation (mounted on PCB) @ TA = 25℃, Ptot: 3.3 W; (9)Electrostatic Discharge Voltage (Human Body Model), VESD: 2000 V.

Features

TLE6232GP features: (1)Short Circuit Protection up to 24 V; (2)Over-temperature Protection; (3)Over-voltage Protection; (4)16 bit Serial Data Input and Diagnostic Output (2 bit/ch. acc. SPI protocol); (5)Direct Parallel Control of all six Channels for PWM Applications; (6)General Fault Flag; (7)Low Quiescent Current; (8)Compatible with 3V Micro Controllers; (9)Electrostatic Discharge (ESD) Protection; (10)Parallel Inputs High or Low Active Programmable.
