Product Summary

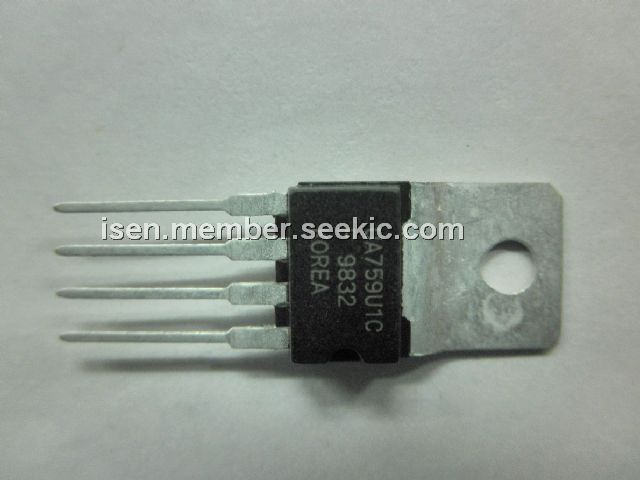

The UA759U1C is a high performance monolithic operational amplifier constructed using the Fairchild plannar epitaxial process. The UA759U1C is designed to operate from a single or dual power supply with the input common mode range including the negative supply. The high gain and high output power provide superior performance whenever an operational amplifier is needed.

Parametrics

UA759U1C absolute maximum ratings: (1)storage temperature range, metal can: -65 to 175℃; power watt: -65 to 150℃; (2)operating junction temperature range: -55 to 150℃; (3)lead temperature: 300℃; (4)internal power dissipation: internally limited; (5)supply voltage: ±18V; (6)differential input voltage: 30V; (7)input voltage: ±15V.

Features

UA759U1C features: (1)output current: 325mA minimum; (2)internal short circuit current limiting; (3)internal thermal overload protection; (4)internal output transistors safe-area protection; (5)input common mode voltage range includes ground or negative supply.

Diagrams

UA759U1C equivalent circuit

UA759
UA759
