Product Summary

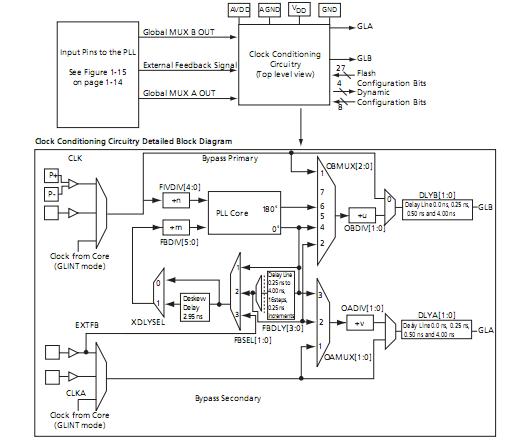

The APA300 is a Flash FPGA. It offers a unique clock conditioning circuit based on two on-board phase-locked loops (PLLs). The device also offers up to one million system gates, supported with up to 198 kbits of two-port SRAM and up to 712 user I/Os, all providing 50 MHz PCI performance.
Parametrics
APA300 absolute maximum ratings: (1)Supply Voltage Core (VDD): –0.3V to 3.0V; (2)Supply Voltage I/O Ring (VDDP):–0.3V to 4.0V; (3)DC Input Voltage:–0.3V to VDDP + 0.3V; (4)PCI DC Input Voltage:–1.0V to VDDP + 1.0V; (5)PCI DC Input Clamp Current (absolute): 10 mA; (6)LVPECL Input Voltage:–0.3V to VDDP + 0.5V; (7)GND:0V.
Features
APA300 features: (1)75,000 to 1 Million System Gates; (2)27 k to 198 kbits of Two-Port SRAM; (3)66 to 712 User I/Os; (4)300, 000 to 1 million System Gates; (5)72 k to 198 kbits of Two Port SRAM; (6)158 to 712 User I/Os; (7)0.22 μm 4 LM Flash-Based CMOS Process; (8)Live At Power-Up (LAPU) Level 0 Support; (9)Single-Chip Solution; (10)No Configuration Device Required; (11)Retains Programmed Design during Power-Down/Up Cycles; (12)Mil/Aero Devices Operate over Full Military Temperature Range; (13)Low Power; (14)High Performance Routing Hierarchy.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 APA300 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
APA3002 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
APA300-BG456 |
|
IC FPGA PROASIC+ 300K 456-PBGA |
Data Sheet |
|
|
||||||
|
APA300-BG456I |
|
IC FPGA PROASIC+ 300K 456-PBGA |
Data Sheet |
|
|
||||||
|
APA300-BGG456 |
|
IC FPGA PROASIC+ 300K 456-PBGA |
Data Sheet |
|
|
||||||
|
APA300-BGG456I |
|
IC FPGA PROASIC+ 300K 456-PBGA |
Data Sheet |
|
|
||||||
|
APA300-CQ208B |
|
IC FPGA PROASIC+ 300K 208-CQFP |
Data Sheet |
|
|
||||||
|
APA300-CQ352B |
|
IC FPGA PROASIC+ 300K 352-CQFP |
Data Sheet |
|
|
||||||
