Product Summary

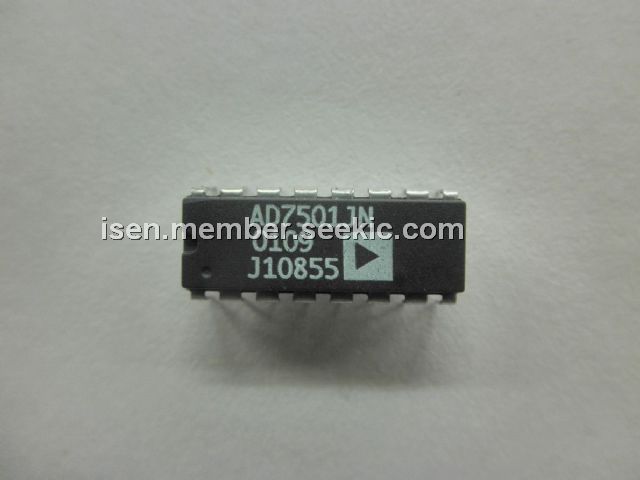

The AD7501JN is a monolithic CMOS, 8-channel analog multiplexer which switches one of eight inputs to a common output, depending on the state of three binary address lines and an enable input. All digital inputs are TTL/DTL and CMOS logic compatible. Depending on the state of two binary address inputs and an enable, AD7501JN switches two output buses to two of eight inputs.
Parametrics
AD7501JN absolute maximum ratings: (1)VDD to GND: +17 V; (2)VSS to GND: –17 V; (3)V Between Any Switch Terminals1: 25 V; (4)Digital Input Voltage Range: VDD to GND; (5)Overvoltage at VOUT (VS): VSS, VDD; (6)Switch Current (IS, Continuous One Channel): 35 mA; (7)Switch Current (IS, Surge One Channel) 1 ms Duration, 10% Duty Cycle: 50 mA; (8)Power Dissipation (Any Package)Up to +75℃: 450 mW; (9)Derates above +75℃ by 6 mW/℃; (10)Operating Temperature, Commercial (KN Version): 0℃ to +70℃; (11)Industrial (KQ Version): –25℃ to +85℃; (12)Extended (SQ, SE Versions): –55℃ to +125℃; (13)Storage Temperature: –65℃ to +150℃; (14)Lead Temperature (Soldering, 10 sec): +300℃.
Features
AD7501JN features: (1)DTL/TTL/CMOS Direct Interface; (2)Power Dissipation: 30 μW; (3)RON: 170Ω; (4)Standard 16-Lead DlPs and 20-Terminal Surface Mount Packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7501JN |
|
IC MULTIPLEXER 8X1 16DIP |
Data Sheet |
|
|
||||||||||||||||
|
AD7501JNZ |
|
IC MULTIPLEXER 8X1 16DIP |
Data Sheet |
|
|
||||||||||||||||
