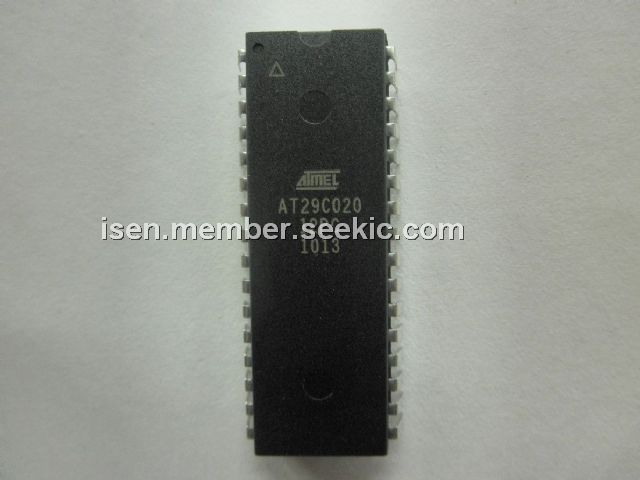

AT29C020-12PC

5-volt-only, in-system Flash programmable, erasable read only memory, DIP, -0.6V to +6.25V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: AT29C020-12PC

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-13

From Other Seller

Part Number:AT29C020-12PC
US $0.10 - 0.50
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT29C020-12PC is a 5-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 2 megabits of memory is organized as 262,144 bytes. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT29C020-12PC offers access times to 90 ns with power dissipation of just 220 mW over the commercial temperature range. When the AT29C020-12PC is deselected, the CMOS standby current is less than 100 µA. Device endurance is such that any sector can typically be written to in excess of 10,000 times.

Parametrics

AT29C020-12PC absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT29C020-12PC features: (1)Fast Read Access Time - 90 ns; (2)5-Volt-Only Reprogramming; (3)Sector Program Operation: Single Cycle Reprogram (Erase and Program); 1024 Sectors (256 bytes/sector); Internal Address and Data Latches for 256-Bytes; (4)Internal Program Control and Timer; (5)Hardware and Software Data Protection; (6)Two 8 KB Boot Blocks with Lockout; (7)Fast Sector Program Cycle Time - 10 ms; (8)DATA Polling for End of Program Detection ; (9)Low Power Dissipation: 40 mA Active Current; 100 μA CMOS Standby Current; (10)Typical Endurance > 10,000 Cycles; (11)Single 5V ±10% Supply; (12)CMOS and TTL Compatible Inputs and Outputs; (13)Commercial and Industrial Temperature Ranges.
