AM26LS30PC

low power Schottky set, DIP, –0.5 to +7.0Vdc, Single–Ended Mode, High Impedance Outputs

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: AM26LS30PC

Brand:: Advanced Micro Devices - AMD | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-13

From Other Seller

Part Number:AM26LS30PC
US $0.10 - 0.50
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

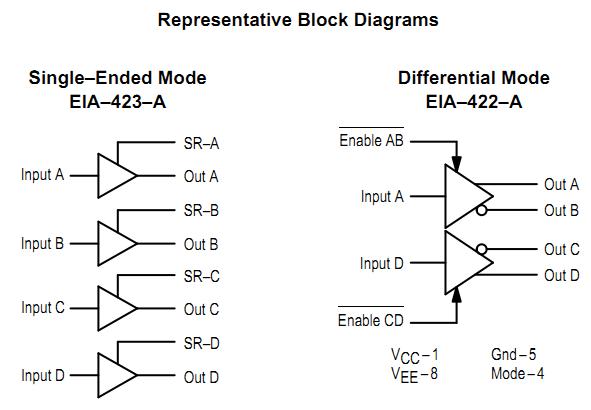

The AM26LS30PC is a low power Schottky set of line drivers which can be configured as two differential drivers which comply with EIA–422–A standards, or as four single–ended drivers which comply with EIA–423–A standards. A mode select pin and appropriate choice of power supplies determine the mode. Each driver of the AM26LS30PC can source and sink currents in excess of 50 mA.

Parametrics

AM26LS30PC absolute maximum ratings: (1)Power Supply Voltage, VCC: –0.5, +7.0Vdc; VEE: –7.0, +0.5Vdc; (2)Input Voltage (All Inputs), Vin: –0.5, +20 Vdc; (3)Applied Output Voltage when in High Impedance Mode (VCC = 5.0 V, Pin 4 = Logic 0, Pins 3, 6 = Logic 1), Vza: ±15 Vdc; (4)Output Voltage with VCC, VEE = 0 V, Vzb: ±15V; (5)Output Current, IO: Self limiting; (6)Junction Temperature, TJ: –65, +150℃.

Features

AM26LS30PC features: (1)Operates as Two Differential EIA–422–A Drivers, or Four Single–Ended EIA–423–A Drivers; (2)High Impedance Outputs in Differential Mode; (3)Short Circuit Current Limit In Both Source and Sink Modes; (4)± 10 V Common Mode Range on High Impedance Outputs; (5)± 15 V Range on Inputs; (6)Low Current PNP Inputs Compatible with TTL, CMOS, and MOS Outputs; (7)Individual Output Slew Rate Control in Single–Ended Mode; (8)Replacement for the AMD AM25LS30 and National Semiconductor DS3691.
