AT89C51IC2-UM

Product Summary

The AT89C51IC2-UM is an 8-bit Flash Microcontroller with 2-wire Interface. The AT89C51IC2-UM contains a 32K bytes Flash memory block for program and data. The 32K bytes Flash memory can be programmed either in parallel mode or in serial mode with the ISP capability or with software. The programming voltage is internally generated from the standard VCC pin. The AT89C51IC2-UM retains all features of the 80C52 with 256 bytes of internal RAM, a 10-source 4-level interrupt controller and three timer/counters.

Parametrics

AT89C51IC2-UM absolute maximum ratings: (1)C = commercial: 0 to 70℃; (2)I = industrial: -40 to 85℃; (3)Storage Temperature: -65 to + 150℃; (4)Voltage on VCC to VSS: -0.5V to + 6.5V; (5)Voltage on Any Pin to VSS: -0.5V to VCC + 0.5V; (6)Power Dissipation: 1 W.

Features

AT89C51IC2-UM features: (1)80C52 Compatible: 8051 Pin and Instruction Compatible; Four 8-bit I/O ports + 2 I/O 2-wire Interface (TWI) Pins; Three 16-bit Timer/Counters; 256 bytes Scratch Pad RAM; 10 Interrupt Sources with 4 Priority Levels; Dual Data Pointer; (2)Variable Length MOVX for Slow RAM/Peripherals; (3)ISP (In-System-Programming) Using Standard Vcc Power Supply; (4)Boot ROM Contains Low Level Flash Programming Routines and a Default Serial Loader; (5)High-speed Architecture; (6)Keyboard Interrupt Interface on Port P1; (7)400-Kbits/s Multimaster 2-wire Interface; (8)SPI Interface (Master/Slave Mode); (9)Sub-clock 32 kHz Crystal Oscillator ; (10)8-bit clock Prescaler; (11)Improved X2 Mode With Independant Selection for CPU and Each Peripheral; (12)Programmable Counter Array 5 Channels with: High Speed Output; Compare/Capture; Pulse Width Modulator; Watchdog Timer Capabilities; (13)Asynchronous Port Reset; (14)Full-duplex Enhanced UART; (15)Dedicated Baud Rate Generator for UART; (16)Low EMI (Inhibit ALE); (17)Hardware Watchdog Timer (One-time enabled with Reset-Out); (18)Power Control Modes: Idle Mode; Power-down Mode; Power-Off Flag.

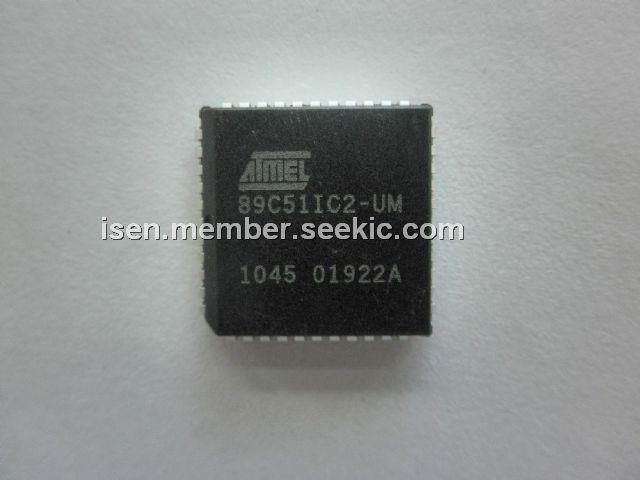

Diagrams
