Product Summary
The BAS16 is a high-speed switching diode. It is encapsulated in small Surface-Mounted Device (SMD) plastic packages. It is suitable for high-speed switching and general-purpose switching.
Parametrics
Absoulte maximum ratings: (1)Tj junction temperature: - 150 ℃ max; (2)Tamb ambient temperature: -65 +150 ℃; (3)Tstg storage temperature: -65 +150 ℃.
Features
Features: (1)High switching speed: trr≤4ns; (2)Low capacitance; (3)Low leakage current; (4)Reverse voltage: VR≤100 V; (5)Repetitive peak reverse voltage: VRRM≤100 V; (6)Small SMD plastic packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

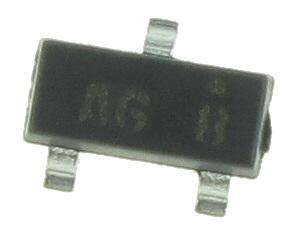

 BAS16,215 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) SW 75V 215MA HS |
Data Sheet |
|
|
||||||||||||
|
BAS16,235 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) DIODE SW TAPE-11 |
Data Sheet |
|
|
||||||||||||
 |
BAS16_L99Z_Q |
Fairchild Semiconductor |
Rectifiers High Conductance Ultra Fast |
Data Sheet |
Negotiable |
|
||||||||||||
|
BAS16_Q |
Fairchild Semiconductor |
Rectifiers 85V 200mA |
Data Sheet |
Negotiable |
|
||||||||||||
|
BAS1602VE6327XT |
Infineon Technologies |
Diodes (General Purpose, Power, Switching) Silicon Switching Diode |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BAS16J,135 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) Switching Diodes 1.5pF 550mW |
Data Sheet |
|
|
||||||||||||
 |
BAS16H,115 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) HI SPEED SWITCHING |
Data Sheet |
|
|
||||||||||||
 |
BAS16D-V-GS08 |
Vishay Semiconductors |
Diodes (General Purpose, Power, Switching) 75 Volt 0.25 Amp 2.0A IFSM @ 1uS |
Data Sheet |
|
|
||||||||||||
