Product Summary

The AD847JN is a high speed, low power monolithic op amp. It represents a breakthrough in high speed amplifiers offering superior ac & dc performance and low power, all at low cost. The excellent dc performance is demonstrated by AD847JN ±5 V specifications which include an open-loop gain of 3500 V (500 W load) and low input offset voltage of 0.5 mV. Commonmode rejection is a minimum of 78 dB. AD847JN Output voltage swing is ±3V into loads as low as 150 W. The applications of the AD847JN include (1)Video Instrumentation; (2)Imaging Equipment; (3)Copiers, Fax, Scanners, Cameras; (4)High Speed Cable Driver; (5)High Speed DAC and Flash ADC Buffers.

Parametrics

AD847JN absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation2 Plastic (N): 1.2 Watts; (3)Small Outline (R): 0.8 Watts; (4)Cerdip (Q): 1.1 Watts; (5)Input Voltage: ±VS; (6)Differential Input Voltage: ±6 V; (7)Storage Temperature Range (Q): -65℃ to +150℃; (8)(N, R): -65℃ to +125℃; (9)Junction Temperature: 175℃; (10)Lead Temperature Range (Soldering 60 sec): +300℃.

Features

AD847JN features: (1)Superior Performance, High Unity Gain BW: 50 MHz; (2)Excellent DC Performance, High Open-Loop Gain 5.5 V/mV (RLOAD = 1 kV); Low Input Offset Voltage: 0.5 mV; (3)Specified for ±5 V and ±15 V Operation; (4)Available in a Wide Variety of Options; (5)Dual Version Available: AD827 (8 Lead); (6)Enhanced Replacement for LM6361; (7)Replacement for HA2544, HA2520/2/5 and EL2020.

Diagrams

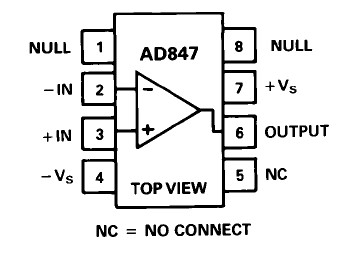

AD847JN diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

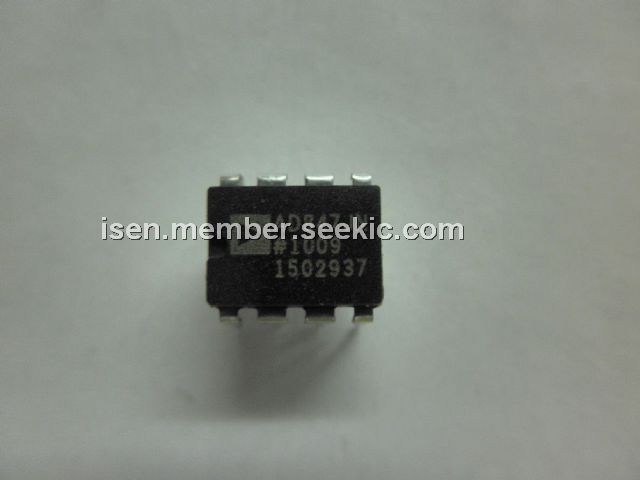

AD847JN
AD847JN


IC OPAMP GP 50MHZ LP 32MA 8DIP

Data Sheet

0-50: $3.61
AD847JNZ
AD847JNZ


IC OPAMP GP 50MHZ LP 32MA 8DIP

Data Sheet

0-1: $4.03
1-10: $3.62
10-25: $3.30
25-100: $2.98
100-250: $2.74
250-500: $2.49
500-1000: $2.17
1000-2500: $2.15
