Product Summary

The M30624FGPFP of single-chip microcomputer is built using the high performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 80-pin, 100-pin and 128-pin plastic molded QFP. This single-chip microcomputer operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, it is capable of executing instructions at high speed. In addition, this microcomputer contains a multiplier and DMAC which combined with fast instruction processing capability, makes it suitable for control of various OA, communication, and industrial equipment which requires high-speed arithmetic/logic operations.

Parametrics

Absolute maximum ratings: (1)Supply voltage, VCC1, VCC2, at the condition of VCC1=AVCC: -0.3 to 6.5V; (2)Supply voltage, VCC2, at the condition of VCC2: -0.3 to VCC1+0.1V; (3)Analog supply voltage, AVCC, at the condition of VCC1=AVCC: -0.3 to 6.5V; (4)Input voltage, VI, RESET, CNVSS, BYTE, P6_0 to P6_7, P7_2 to P7_7, P8_0 to P8_7, P9_0 to P9_7, P10_0 to P10_7, P11_0 to P11_7, P14_0, P14_1, VREF, XIN: -0.3 to VCC1+0.3V; (5)Input voltage, VI, P0_0 to P0_7, P1_0 to P1_7, P2_0 to P2_7, P3_0 to P3_7, P4_0 to P4_7, P5_0 to P5_7, P12_0 to P12_7, P13_0 to P13_7: -0.3 to VCC2+0.3V; (6)Input voltage, VI, P7_0, P7_1: -0.3 to 6.5V; (7)Power dissipation, Pd, -40 ℃ < Topr ≤ 85 ℃: 300mW; (8)Operating ambient temperature, Topr, When the microcomputer is operating: -20 to 85 / -40 to 85℃; (9)Operating ambient temperature, Topr, Flash program erase: 0 to 60℃; (10)Storage temperature, Tstg: -65 to 150℃.

Features

Features: (1)Audio, cameras application; (2)office/communications portable/industrial equipment; (3)used in automobile; (4)Shortest instruction execution time.

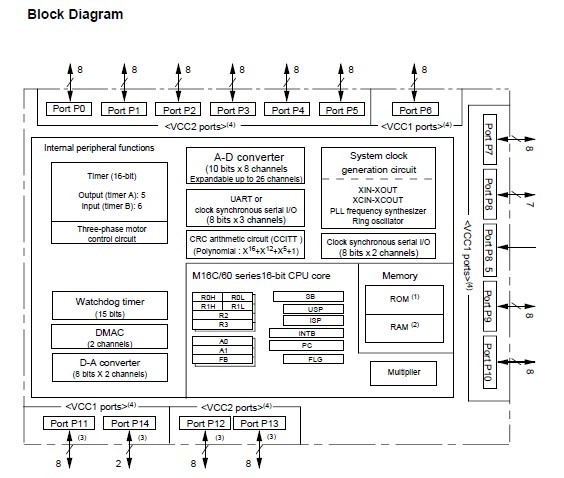

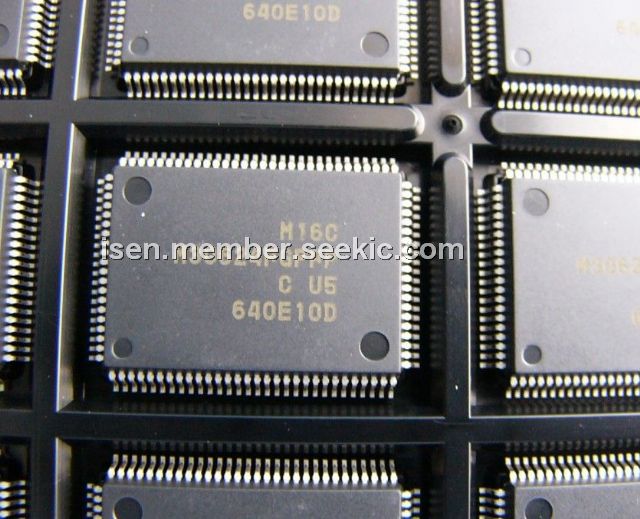

Diagrams
