Product Summary

The MAX487E is a low-power transceiver for RS-485 and RS-422 communication. Each part contains one driver and one receiver. The driver slew rates of the MAX487E is not limited, allowing them to transmit up to 2.5Mbps. The transceiver draws between 120uA and 500uA of supply current when unloaded or fully loaded with disabled drivers. All parts operate from a single 5V supply. The receiver input of MAX487E has a fail-safe feature that guarantees a logic-high output if the input is open circuit. The applications of the MAX487E are Low-Power RS-485 Transceivers, Low-Power RS-422 Transceivers, Level Translators, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks.

Parametrics

MAX487E absolute Maximum Ratings: (1)Supply Voltage (VCC): 12V; (2)Control Input Voltage (RE, DE): -0.5V to (VCC + 0.5V); (3)Driver Input Voltage (DI): -0.5V to (VCC + 0.5V); (4)Driver Output Voltage (A, B): -8V to +12.5V; (5)Receiver Input Voltage (A, B): -8V to +12.5V; (6)Receiver Output Voltage (RO): -0.5V to (VCC +0.5V); (7)8-Pin Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW; (8)8-Pin SO (derate 5.88mW/℃ above +70℃): 471mW; (9)8-Pin uMAX (derate 4.1mW/℃ above +70℃) : 830mW; (10)8-Pin CERDIP (derate 8.00mW/℃ above +70℃): 640mW; (11)Operating Temperature Ranges of MAX485ESA+: -40℃ to +85℃; (12)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX487E features: (1)ESD Protection: ±15kV—Human Body Model; (2)Slew-Rate Limited for Error-Free Data Transmission; (3)Low Quiescent Current:120μA; (4)-7V to +12V Common-Mode Input Voltage Range; (5)Three-State Outputs; (6)30ns Propagation Delays, 5ns Skew; (7)Full-Duplex and Half-Duplex Versions Available; (8)Allows up to 128 Transceivers on the Bus; (9)Current Limiting and Thermal Shutdown for Driver Overload Protection.

Diagrams

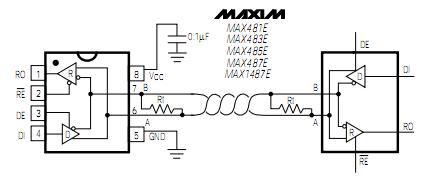

MAX487E circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX487E
MAX487E

Other


Data Sheet

Negotiable

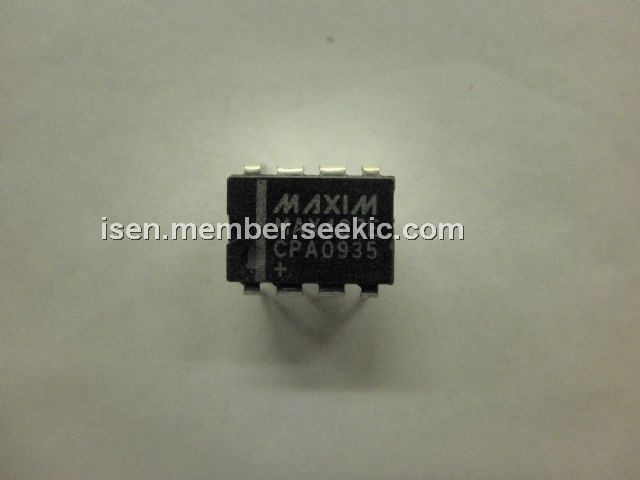

MAX487ECPA
MAX487ECPA

Maxim Integrated Products

RS-422/RS-485 Interface IC

Data Sheet

Negotiable
MAX487ECPA+
MAX487ECPA+

Maxim Integrated Products

RS-422/RS-485 Interface IC RS-485/RS-422 Transceiver

Data Sheet

0-1: $2.39
1-25: $1.60
25-50: $1.13
50-250: $1.12
MAX487ECSA
MAX487ECSA

Maxim Integrated Products

RS-422/RS-485 Interface IC

Data Sheet

Negotiable
MAX487ECSA+
MAX487ECSA+

Maxim Integrated Products

RS-422/RS-485 Interface IC RS-485/RS-422 Transceiver

Data Sheet

0-1: $2.38
1-25: $1.60
25-50: $1.16
50-100: $1.15
MAX487ECSA+T
MAX487ECSA+T

Maxim Integrated Products

RS-422/RS-485 Interface IC RS-485/RS-422 Transceiver

Data Sheet

0-2080: $1.01
2080-2500: $1.01
MAX487ECSA-T
MAX487ECSA-T

Maxim Integrated Products

RS-422/RS-485 Interface IC

Data Sheet

Negotiable
MAX487ECUA
MAX487ECUA

Maxim Integrated Products

RS-422/RS-485 Interface IC

Data Sheet

Negotiable
