Product Summary

The MC1495L is a wideband linear four-quadrant multiplier which is designed for use where the output is a linear product of two input voltages. Maximum versatility is assuerd by allowing the user to select the level shift method.

Parametrics

MC1495L absolute maximum ratings: (1)Applied voltage: 30 Vdc; (2)Differential input signal: ±(6+I13 Rx)/±(6+I3 RY) Vdc; (3)Power dissipation, D suffix package: 862 mW; (4)Power dissipation, derate above Ta=25℃: 145 mW/℃; (5)Power dissipation, J suffix package: 750 mW; (6)Power dissipation, derate above Ta=25℃: 5.0 mW/℃; (7)Operating tempearture range: -55 to +125 ℃; (8)Storage temperature: -65 to +150 ℃.

Features

MC1495L features: (1)Wide bandwidth; (2)Excellent linearity: 1% max error on X input, 2% max error on Y input; (3)Adjustable scale factor, K; (4)Excellent temperature stability; (5)Wide input voltage range: ±10 V; (6)±15V operation.

Diagrams

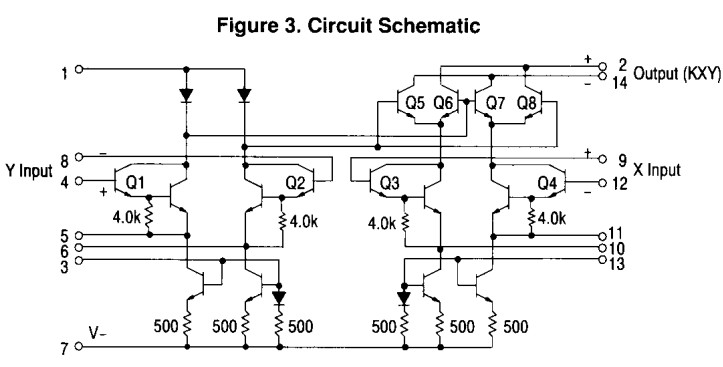

MC1495L schematic circuit diagram
