Product Summary

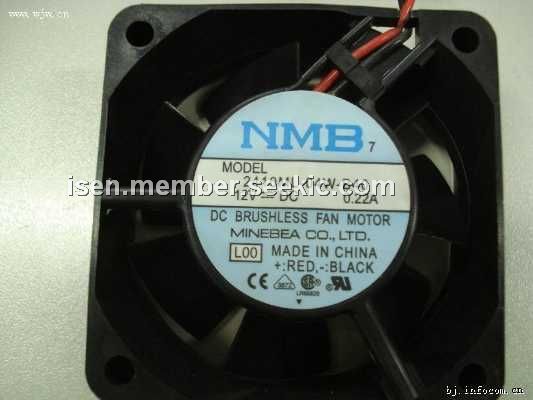

The 2410ML-04W-B40 is a bruchless DC axial fan motor. The size of 2410ML-04W-B40 is 80mm sq x 25mm. With a power consumption of 2.64W, the operating voltage is range from 6 to 13.8V. The casing and impeller material is plastic (Black) 94V-0. The motor protection has auto restart and polarity protection function.

Parametrics

Specifications: (1)Motor protection; auto restart/polarity; (2)insulation resistance: 10MΩ or over with a DC500V Megger; (3)Dielectric withstand voltage: AC 700V 1s; (4)Model: 04W-B40-B00; (5)Voltage(V): 12; (6)Range(V): 6-13,8; (7)Power(W): 2,64; (8)Current(mA): 220; (9)Speed(RPM): 4550; (10)Noise(dBA): 33,5; (11)Pressure(mm H2O): 5,31; (12)Airflow(m3/hr): 36,6; (13)Airflow(CFM): 21,5; (14)material of Casing : Plastic (Black) 94V-0; (15)material of Impeller : Plastic (Black) 94V-0; (16)material of Bearing : Ball Bearing; (17)material of Lead Wire : UL1007, AWG24, +Red, -Black.

Features

Features: (1)Size: 80mm sq x 25mm; (2)Airflow: 23 –43 m3/hr; (3)Noise: 23 – 36 dBA; (4)Weight: 65 g; (5)Lead Wires: AWG 24, Red/Black UL1007, CSA TR-64; (6)Impeller and Venturi: UL94V-0 Reinforced plastic.

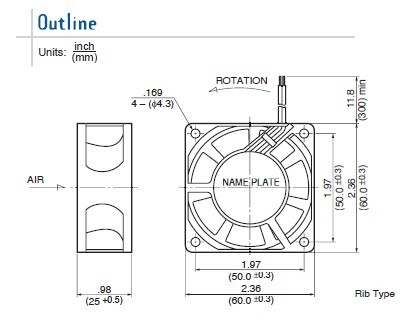

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
2410ML-04W-B40-B00
2410ML-04W-B40-B00


FAN DC AXIAL 12V 60X25 4550 RPM

Data Sheet

0-1: $6.74
1-10: $6.17
10-25: $5.16
25-50: $4.73
50-100: $4.16
100-250: $3.87
250-500: $3.59
500-1000: $3.44
2410ML-04W-B40-E00
2410ML-04W-B40-E00


FAN DC AXIAL 12V 60X25 4550 RPM

Data Sheet

0-180: $4.16
