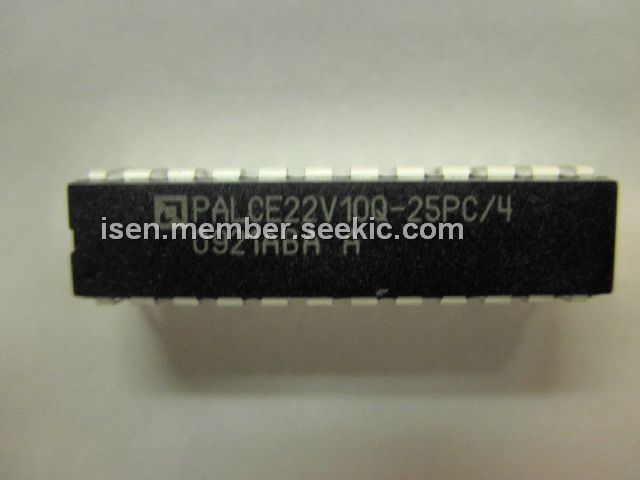

PALCE22V10Q-25PC4

24-Pin, EE CMOS, Versatile PAL Device, DIP, -0.5 V to +7.0 V, 100 mA, PALCE22V10Q-25PC4

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: PALCE22V10Q-25PC4

Brand:: Lattice Semiconductor - Lattice | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-06

From Other Seller

Part Number:PALCE22V10Q-25PC4
US $0.10 - 0.50
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

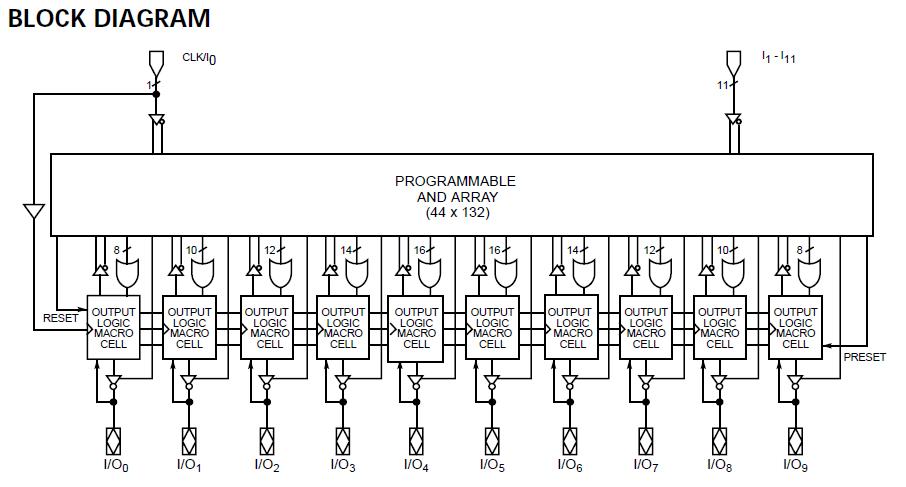

Product Summary

The PALCE22V10Q-25PC4 is a 24-Pin EE CMOS (Zero Power) Versatile PAL Device. It provides user-programmable logic for replacing conventional SSI/MSI gates and flip-flops at a reduced chip count. The PALCE22V10Q-25PC4 is an advanced PAL device built with zero-power, high-speed, electricallyerasable CMOS technology. It provides user-programmable logic for replacing conventional zeropower CMOS SSI/MSI gates and flip-flops at a reduced chip count. The PALCE22V10Q-25PC4 provides zero standby power and high speed. At 30 μA maximum standby current, the PALCE22V10Q-25PC4 allows battery-powered operation for an extended period.

Parametrics

PALCE22V10Q-25PC4 absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -55℃ to +125℃; (3)Supply Voltage with Respect to Ground: -0.5 V to +7.0 V; (4)DC Input Voltage: -0.5 V to VCC + 1.0 V; (5)DC Output or I/O Pin Voltage: -0.5 V to VCC + 1.0 V; (6)Static Discharge Voltage: 2001 V; (7)Latchup Current (TA = 0℃ to +75℃): 100 mA.
