Product Summary
The PEF22624E is the latest member of Infineon’s 2nd generation SOCRATES family of SHDSL transceiver designed for pure TDM applications. The PEF22624E features full compliance with the ETSI TS 101524 and the ITU G.991.2 (G.SHDSL/G.SHDSL.bis) standards. Advanced system functionality and cost saving features continue to provide significant low BOM advantages in the SOCRATES tradition.
Parametrics
PEF22624E absolute maximum ratings: (1)Only two power supplies: 3.3V, 1.8V; (2)Power consumption approximately: 500 mW per channel; (3)Temperature range: -40℃ to +85℃.
Features
PEF22624E features: (1)Fully integrated 4/2/1 channel transceiver solution; (2)Support of payload data rates from 144 kbit/s up to 6.392 kbit/s with 8 kbit/s granularity; (3)M-pair functionality integrated; (4)Tunable hybrid for optimal loop adaptation and reach; (5)Only a few external passive components required.

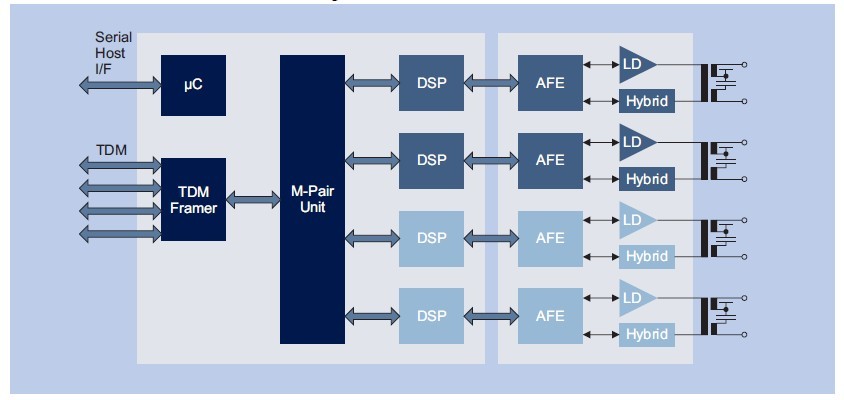

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PEF22624EV1.3-G |
Infineon Technologies |
Network Controller & Processor ICs SHDSL |
Data Sheet |
Negotiable |
|
||||
|
PEF22624EV2.1-G |
Infineon Technologies |
Network Controller & Processor ICs SHDSL |
Data Sheet |
Negotiable |
|
||||
|
PEF22624EV2.2-G |
Infineon Technologies |
Network Controller & Processor ICs SHDSL |
Data Sheet |
Negotiable |
|
||||
