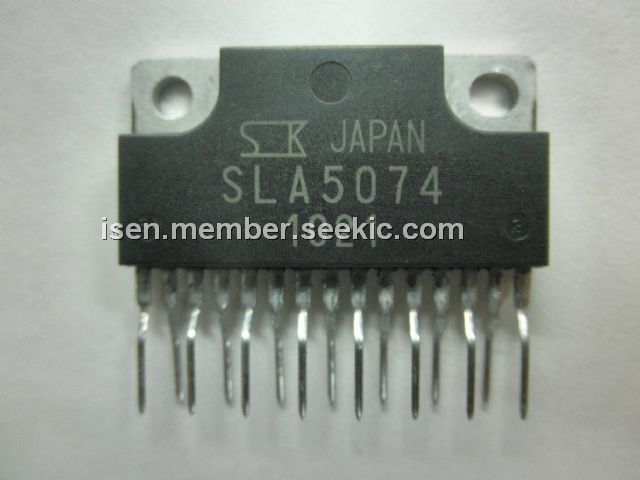

SLA5074

N-channel, 5-phase motor drive, ZIP, 60 V, 5A, 4.8W, 35 pF, 70 ns, SLA5074

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: SLA5074

Brand:: Sanken electric - Sanken | Pack: ZIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-05

From Other Seller

Part Number:SLA5074
US $0.10 - 0.50
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SLA5074 is an N-channel 5-phase motor drive.

Parametrics

SLA5074 absolute maximum ratings: (1)VDSS: 60 V; (2)VGSS: ±20 V; (3)ID: 5A; (4)ID(pulse): 8A at PW≤1ms, Du≤25%; (5)θ j-a: 26℃/W at Junction-Air, Ta=25℃, with all circuits operating; (6)θ j-c: 5℃/W at Junction-Case, Tc=25℃, with all circuits operating; (7)VISO: 1000Vrms Between fin and lead pin, AC; (8)Tch: 150℃; (9)Tstg: –40 to +150℃; (10)PT: 4.8W at Ta=25℃; 25W at Tc=25℃.

Features

SLA5074 features: (1)V(BR)DSS: 60 V; (2)IGSS: ±100 nA; (3)IDSS: 100 μA; (4)VTH: 1.0 2.0 V; (5)Re(yfs): 5.5 S; (6)RDS(ON): 0.3Ω; (7)Ciss: 320 pF; (8)Coss: 160 pF; (9)Crss: 35 pF; (10)td(on): 16 ns; (11)tr: 65 ns; (12)td(off): 70 ns; (13)tf: 45 ns; (14)VSD: 1.2 V; (15)trr: 65 ns.
