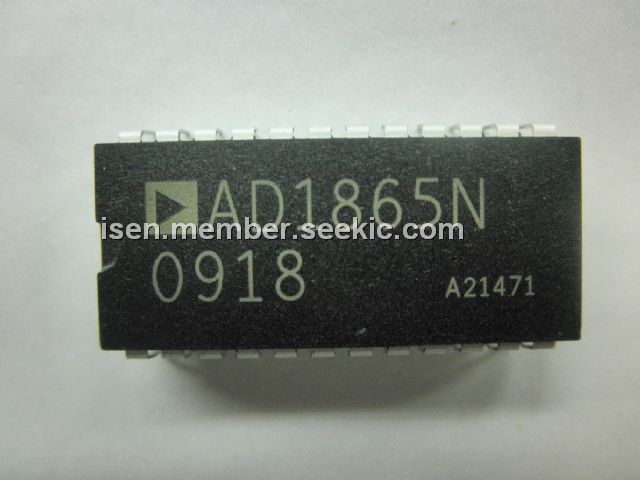

The AD1865N is a complete, dual 18-bit DAC offering excellent THD+N and SNR while requiring no external components. Two complete signal channels of AD1865N are included. This results in cophased voltage or current output signals and eliminates the need for output demultiplexing circuitry. The monolithic AD1865N chip includes CMOS logic elements, bipolar and MOS linear elements and laser-trimmed thin-film resistor elements, all fabricated on Analog Devices ABCMOS process.
Parametrics
AD1865N absolute maximum ratings: (1)VL to DGND: 0V to 6.0V; (2)VS to AGND: 0V to 6.0V; (3)–VS to AGND: –6.0V to 0V; (4)AGND to DGND: ±0.3 V; (5)Digital Inputs to DGND: –0.3 to VL; (6)Short Circuit Protection: Indefinite Short to Ground; (7)Soldering (10 sec): +300℃.
Features
AD1865N features: (1)Dual Serial Input, Voltage Output DACs; (2)No External Components Required; (3)110 dB SNR; (4)0.003% THD+N; (5)Operates at 16 3 Oversampling per Channel; (6)65 Volt Operation; (7)Cophased Outputs; (8)116 dB Channel Separation; (9)Pin Compatible with AD1864; (10)DIP or SOIC Packaging; (11)APPLICATIONS; (12)Multichannel Audio Applications; (13)Compact Disc Players; (14)Multivoice Keyboard Instruments; (15)DAT Players and Recorders; (16)Digital Mixing Consoles; (17)Multimedia Workstations.
