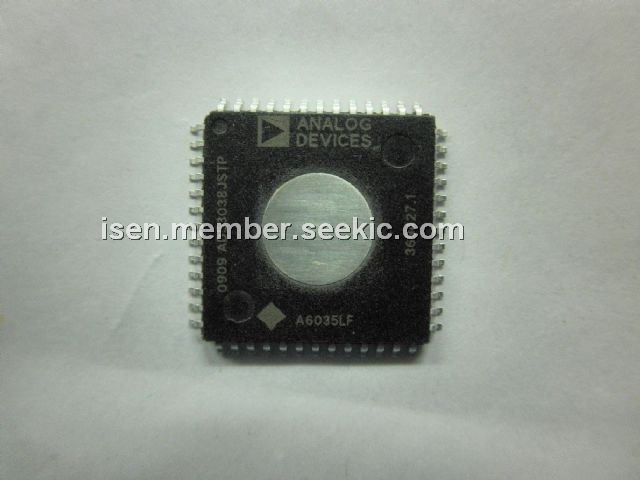

Product Summary

The AD53038JSTP is a dual 8-, 10- and 12-bit buffered voltage output DAC in a 16-lead TSSOP package that operates from a single +2.5 V to +5.5 V supply consuming 230 µA at 3 V. Their on-chip output amplifiers allow the outputs to swing rail-to-rail with a slew rate of 0.7 V/μs. The AD53038JSTP utilizes a versatile 3-wire serial interface that operates at clock rates up to 30 MHz and is compatible with standard SPI, QSPI, MICROWIRE and DSP interface standards. The applications of the AD53038JSTP include Portable Battery Powered Instruments, Digital Gain and Offset Adjustment, Programmable Voltage and Current Sources and Programmable Attenuators.

Parametrics

AD53038JSTP absolute maximum ratings: (1)VDD to GND: –0.3 V to +7 V; (2)Digital Input Voltage to GND: –0.3 V to VDD + 0.3 V; (3)Digital Output Voltage to GND: –0.3 V to VDD + 0.3 V; (4)Reference Input Voltage to GND: –0.3 V to VDD + 0.3 V; (5)VOUTA, VOUTB to GND: –0.3 V to VDD + 0.3 V; (6)Operating Temperature Range: –40 to +105℃; (7)Storage Temperature Range: –65 to +150℃; (8)Junction Temperature (TJ Max): +150℃; (9)Power Dissipation: (TJ Max – TA)/θJA; (10)θJA Thermal Impedance: 160℃/W; (11)Lead Temperature, Soldering: Vapor Phase (60 sec): +215℃; Infrared (15 sec): +220℃.

Features

AD53038JSTP features: (1)Two Buffered 8-Bit DACs in One Package; (2)16-Lead TSSOP Package; (3)Micropower Operation: 300 μA @ 5 V (Including Reference Current); (4)Power-Down to 200 μA at 5 V, 50 nA at 3 V; (5)+2.5 V to +5.5 V Power Supply; (6)Double-Buffered Input Logic; (7)Guaranteed Monotonic By Design Over All Codes; (8)Buffered/Unbuffered Reference Input Options; (9)Output Range: 0–VREF or 0–2 VREF; (10)Power-On-Reset to Zero Volts; (11)SDO Daisy-Chaining Option; (12)Simultaneous Update of DAC Outputs via LDAC Pin; (13)Asynchronous CLR Facility; (14)Low Power Serial Interface with Schmitt-Triggered Inputs; (15)On-Chip Rail-to-Rail Output Buffer Amplifiers.

Diagrams

AD53038JSTP functional block diagram
