Product Summary
The AD736JN is a low power, precision, monolithic true rms-to-dc converter. It is laser trimmed to provide a maximum error of ± 0.3mV ± 0.3% of reading with sine-wave inputs. Furthermore, the AD736JN maintains high accuracy while measuring a wide range of input waveforms, including variable duty cycle pulses and triac (phase) controlled sine waves. The low cost and small physical size of this converter make AD736JN suitable for upgrading the performance of non-rms precision rectifiers in many applications.
Parametrics
AD736JN absolute maximum ratings: (1)Supply Voltage: ± 16.5 V; (2)Internal Power Dissipation: 200 mW; (3)Input Voltage: ±VS; (4)Output Short-Circuit Duration: Indefinite; (5)Differential Input Voltage: +VS and –VS; (6)Storage Temperature Range (Q): –65℃ to +150℃; (7)Storage Temperature Range (N, R): –65℃ to +125℃; (8)Operating Temperature Range: 0℃ to +70℃; (9)Lead Temperature Range (Soldering 60 sec): +300℃; (10)ESD Rating: 500 V.
Features
AD736JN features: (1)True RMS Value; (2)Average Rectified Value; (3)Absolute Value; (4)200 mV Full-Scale Input Range (Larger Inputs with Input Attenuator); (5)Low Input Bias Current: 25 pA max; (6)High Accuracy: ±0.3 mV ±0.3% of Reading; (7)RMS Conversion with Signal Crest Factors Up to 5; (8)Wide Power Supply Range: +2.8 V, –3.2 V to ±16.5 V; (9)Low Power: 200 μA max Supply Current; (10)Buffered Voltage Output; (11)No External Trims Needed for Specified Accuracy.

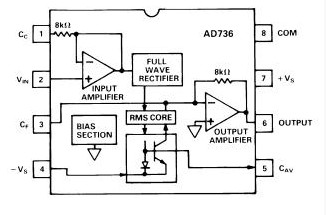

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD736JN |
|
IC TRUE RMS/DC CONV LP 8-DIP |
Data Sheet |
|
|
||||||||||||||||||||
|
AD736JNZ |
|
IC TRUE RMS/DC CONV LP 8-DIP |
Data Sheet |
|
|
||||||||||||||||||||
