AD7871JNZ

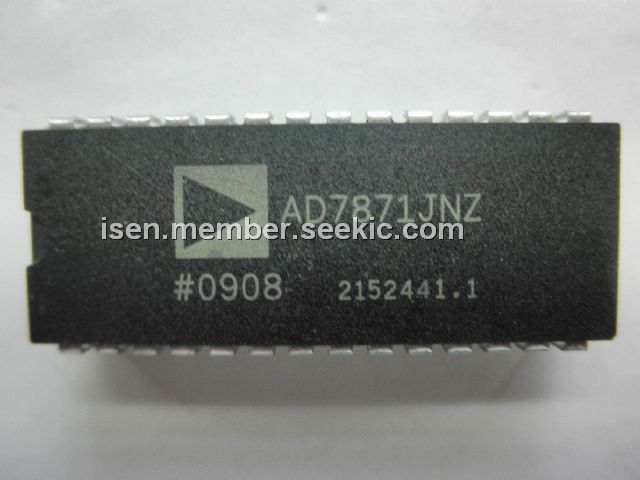

LC2MOS Complete 14-Bit, Sampling ADC, 28-pin DIP, Complete Monolithic 14-Bit ADC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~10.00

PartNumber:: AD7871JNZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-12

From Other Seller

Part Number:AD7871JNZ
US $5.00 - 10.00
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
M27C4001-10F1

US $2.00 - 3.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

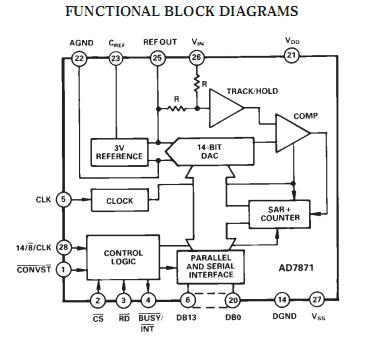

The AD7871JNZ is a fast, complete, 14-bit analog-to-digital converter. It consists of a track/hold amplifier, successive-approximation ADC, 3 V buried Zener reference and versatile interface logic. The AD7871JNZ features a self-contained, laser trimmed internal clock, so no external clock timing components are required. The on-chip clock may be overridden to synchronize ADC operation to the digital system for minimum noise. The applications of the AD7871JNZ are Digital Signal Processing, High Speed Modems, Speech Recognition and Synthesis, Spectrum Analysis, DSP Servo Control.

Parametrics

AD7871JNZ absolute maximum ratings: (1)VDD to AGND:–0.3 V to +7 V; (2)VSS to AGND:+0.3 V to –7 V; (3)AGND to DGND:–0.3 V to VDD + 0.3 V; (4)VIN to AGND:VSS–0.3 V to VDD + 0.3 V; (5)REF OUT, CREF to AGND:0 V to VDD; (6)Digital Inputs to DGND:–0.3 V to VDD + 0.3 V; (7)Digital Outputs to DGND:–0.3 V to VDD + 0.3 V; (8)Operating Temperature Range: Commercial (J, K Versions):0℃ to +70℃， Industrial (A, B Versions):–40℃ to +85℃， Extended (T Version):–55℃ to +125℃; (9)Storage Temperature Range:–65℃ to +150℃; (10)Lead Temperature (Soldering, 10 sec):+300℃; (11)Power Dissipation (Any Package) to +75℃:450 mW; (12)Derates above +75℃ by:6 mW/℃.

Features

AD7871JNZ features: (1)Complete Monolithic 14-Bit ADC; (2)2s Complement Coding; (3)Parallel, Byte and Serial Digital Interface; (4)80 dB SNR at 10 kHz Input Frequency; (5)57 ns Data Access Time; (6)Low Power:50 mW typ; (7)83 kSPS Throughput Rate.
