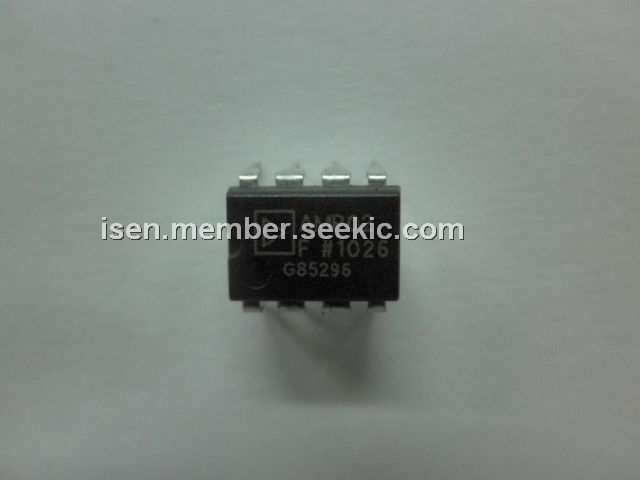

AMP02

first precision instrumentation amplifier, SOP, ±18V, Low Offset Voltage, 115dB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~5.00

PartNumber:: AMP02

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-13

From Other Seller

Part Number:AMP02
US $1.00 - 5.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AMP02 is the first precision instrumentation amplifier available in an 8-pin package. Gain of the AMP02 is set by a single external resistor, and can range from 1 to 10,000. No gain set resistor is required for unity gain. The AMP02 includes an input protection network that allows the inputs to be taken 60 V beyond either supply rail without damaging the device. The applications of the AMP02 include Differential Amplifier, Strain Gauge Amplifier, Thermocouple Amplifier, RTD Amplifier, Programmable Gain Instrumentation Amplifier, Medical Instrumentation and Data Acquisition Systems.

Parametrics

AMP02 absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Common-Mode Input Voltage: [(V–) – 60 V] to [(V+) + 60 V]; (3)Differential Input Voltage: [(V–) – 60 V] to [(V+) + 60 V]; (4)Output Short-Circuit Duration: Continuous; (5)Operating Temperature Range: –40 to +85℃; (6)Storage Temperature Range: –65 to +150℃; (7)Function Temperature Range: –65 to +150℃; (8)Lead Temperature (Soldering, 10 sec): +300℃.
