Product Summary

The BAV99 is a high-speed double diode. It consists of two high-speed switching diodes connected in series, fabricated in planar technology, and encapsulated in the small SOT23 plastic SMD package.

Parametrics

Absolute maximum ratings: (1)VRRM, repetitive peak reverse voltage: 85 V max; (2)VR, continuous reverse voltag: 75 V max; (3)IFRM, repetitive peak forward current: 450 mA max; (4)Ptot, total power dissipation: 250 mW max when Tamb = 25 ℃; (5)Tstg, storage temperature: -65 to +150 ℃ max; (6)Tj, junction temperature: 150 ℃ max.

Features

Features: (1)Small plastic SMD package; (2)High switching speed: max. 4 ns; (3)Continuous reverse voltage: max. 75 V; (4)Repetitive peak reverse voltage: max. 85 V; (5)Repetitive peak forward current: max. 450 mA.

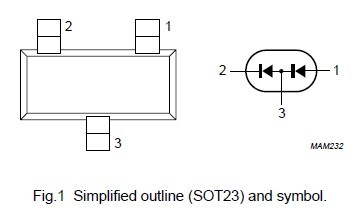

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BAV99
BAV99

Taiwan Semiconductor

Diodes (General Purpose, Power, Switching) 70 Volt 200mA 225mW

Data Sheet

0-9000: $0.01
BAV99 /T3
BAV99 /T3

NXP Semiconductors

Diodes (General Purpose, Power, Switching) DIODE SW TAPE-11

Data Sheet

Negotiable
BAV99,215
BAV99,215

NXP Semiconductors

Diodes (General Purpose, Power, Switching) SW DBL 75V 215MA HS

Data Sheet

0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
BAV99,235
BAV99,235

NXP Semiconductors

Diodes (General Purpose, Power, Switching) DIODE SW TAPE-11

Data Sheet

0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
BAV99/8,215
BAV99/8,215

NXP Semiconductors

Diodes (General Purpose, Power, Switching) HIGH-SPEED SWITCHING DIODES

Data Sheet

0-1: $0.14
1-25: $0.10
25-100: $0.08
100-250: $0.05
BAV99/8,235
BAV99/8,235

NXP Semiconductors

Diodes (General Purpose, Power, Switching) SWTCH 100V 215mA

Data Sheet

0-1: $0.14
1-25: $0.10
25-100: $0.08
100-250: $0.05
BAV99_D87Z
BAV99_D87Z

Fairchild Semiconductor

Rectifiers 70V 200mA A7

Data Sheet

0-1: $0.19
1-25: $0.13
25-100: $0.08
100-250: $0.05
BAV99_S00Z
BAV99_S00Z

Fairchild Semiconductor

Rectifiers High Conductance Ultra Fast

Data Sheet

Negotiable
