Product Summary
The AT24C512B is a Two-wire Serial EEPROM. It provides 524,288 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 65,536 words of 8 bits each.
Parametrics
AT24C512B absolute maximum ratings: (1)Operating Temperature:–55℃ to +125℃; (2)Storage Temperature:–65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground:–1.0V to +7.0V; (4)Maximum Operating Voltage:6.25V; (5)DC Output Current:5.0 mA.
Features
AT24C512B features: (1)Internally Organized 65,536 x 8; (2)Two-wire Serial Interface; (3)Schmitt Triggers, Filtered Inputs for Noise Suppression; (4)Bidirectional Data Transfer Protocol; (5)1 MHz (2.5V, 5.5V), 400 kHz (1.8V) Compatibility; (6)Write Protect Pin for Hardware and Software Data Protection; (7)128-byte Page Write Mode (Partial Page Writes Allowed); (8)Self-timed Write Cycle (5 ms Max); (9)High Reliability.

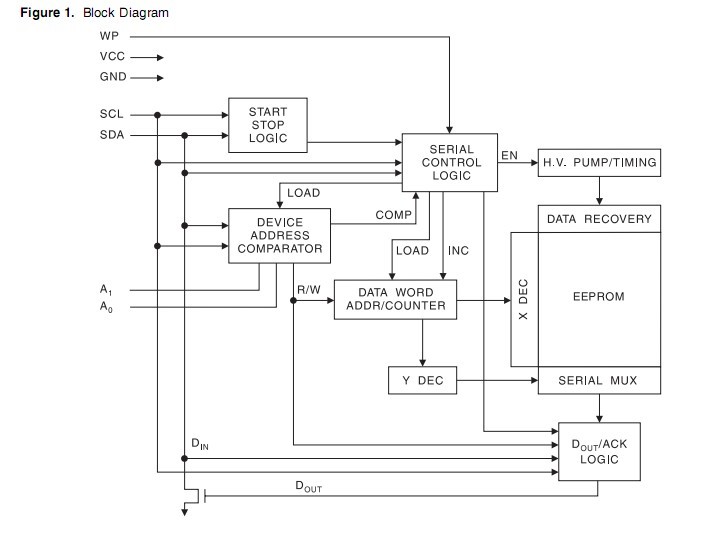

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT24C512B |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
AT24C512BN-SH25-B |
Atmel |
EEPROM 512K 2-WIRE 65 536 x 8 2.5V |
Data Sheet |
Negotiable |
|
||||
|
AT24C512BN-SH25-T |
Atmel |
EEPROM 512K 2-WIRE 65 536 x 8 2.5V |
Data Sheet |
Negotiable |
|
||||
|
AT24C512BN-SH-T |
Atmel |
EEPROM 8 2.5V - 1.8V |
Data Sheet |
Negotiable |
|
||||
|
AT24C512BN-SH-B |
Atmel |
EEPROM 512K 2-WIRE 65 536 x 8 1.8V |
Data Sheet |
Negotiable |
|
||||
 |
AT24C512B-PU |
Atmel |
EEPROM 512K 2-WIRE 65 536 x 8 1.8V |
Data Sheet |
Negotiable |
|
||||
 |
AT24C512B-TH-T |
Atmel |
EEPROM UMPED DIE 1.8V 11 MIL -NIPDAU 1.8V |
Data Sheet |
Negotiable |
|
||||
|
AT24C512B-TH-B |
Atmel |
EEPROM 512K 2-WIRE 65 536 x 8 1.8V |
Data Sheet |
Negotiable |
|
||||
