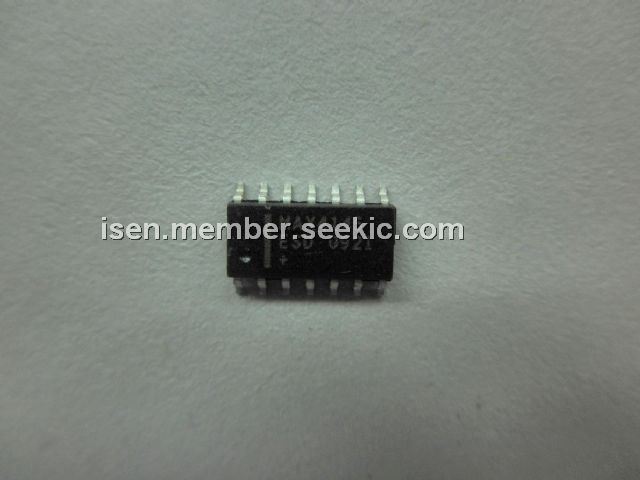

MAX4145ESD

differential line receiver, SO16, 12V, high-speed, low-distortion performance, 180MHz Bandwidth

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~5.00

PartNumber:: MAX4145ESD

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-15

From Other Seller

Part Number:MAX4145ESD
US $1.00 - 5.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

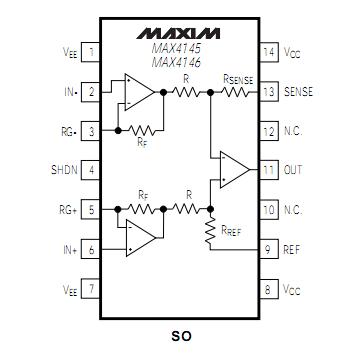

The MAX4145ESD differential line receiver offers unparalleled high-speed, low-distortion performance. Using a three op-amp instrumentation amplifier architecture, the IC has fully symmetrical differential inputs and a single-ended output. It operates from ±5V power supplies and are capable of driving a 150 1/2; load to ±3.7V. The MAX4145ESD is optimized for gains from +1V/V to +10V/V. The device requires a single external resistor to set the closed-loop gain. The applications of the MAX4145ESD include Differential to Single-Ended Conversion, Twisted-Pair to Coaxial Converter, High-Speed Instrumentation Amplifier, Data Acquisition, Medical Instrumentation, High-Speed Differential Line Receiver.

Parametrics

MAX4145ESD absolute maximum ratings: (1)Supply Voltage (VCC to VEE): 12V; (2)Voltage on IN_, SHDN, REF, OUT,; (3)SENSE, RG_: (VEE - 0.3V) to (VCC + 0.3V); (4)Short-Circuit Duration to Ground: 10sec; (5)Input Current (IN_, RG_): ±10mA; (6)Output Current: ±120mA; (7)Continuous Power Dissipation (TA = +70℃): 14-Pin SO (derate 8.33mW/℃ above +70℃): 667mW, 16-Pin QSOP (derate 8.33mW/℃ above +70℃): 667mW; (8)Operating Temperature Range: -40℃ to +85℃; (9)Storage Temperature Range: .-65℃ to +150℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX4145ESD features: (1)External Gain Selection from +1V/V to +10V/V; (2)180MHz Bandwidth; (3)90MHz 0.1dB Gain Flatness; (4)600V/μs Slew Rate; (5)75dB CMR at 10MHz; (6)-92dBc SFDR (f = 10kHz); (7)Very Low Noise: 3.8nV/√Hz (G = +10V/V); (8)800μA Shutdownn.
