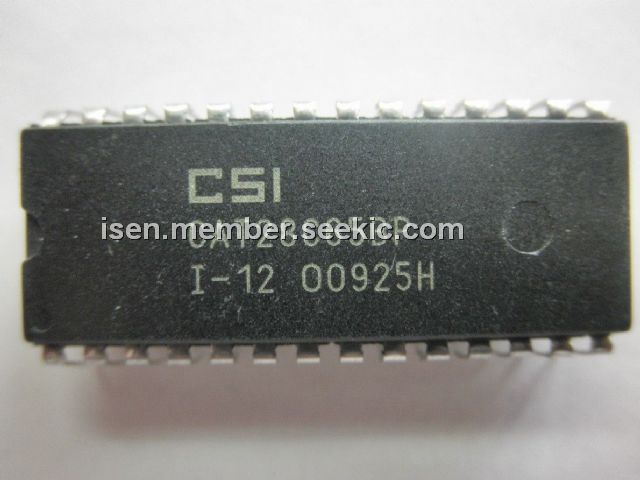

Product Summary
The CAT28C65BP is a fast, low power, 5V-only CMOS parallel EEPROM organized as 8K x 8-bits. The CAT28C65BP requires a simple interface for in-system programming. On-chip address and data latches, self-timed write cycle with auto-clear and VCC power up/down write protection eliminate additional timing and protection hardware. DATA Polling, a RDY/BUSY pin and Toggle status bits signal the start and end of the self-timed write cycle. Additionally, the CAT28C65BP features hardware and software write protection.
Parametrics
CAT28C65BP absolute maximum ratings: (1)Temperature Under Bias: –55 to +125℃; (2)Storage Temperature: –65 to +150℃; (3)Voltage on Any Pin with Respect to Ground: –2.0V to +VCC + 2.0V; (4)VCC with Respect to Ground: –2.0V to +7.0V; (5)Package Power Dissipation Capability (Ta = 25℃): 1.0W; (6)Lead Soldering Temperature (10 secs): 300℃; (7)Output Short Circuit Current: 100 mA.
Features
CAT28C65BP features: (1)Fast read access times: 90/120/150ns; (2)Low power CMOS dissipation: Active: 25 mA max; Standby: 100 μA max; (3)Simple write operation: On-chip address and data latches; Self-timed write cycle with auto-clear; (4)Fast write cycle time: 5ms max; (5)CMOS and TTL compatible I/O; (6)Hardware and software write protection; (7)Commercial, industrial and automotive temperature ranges; (8)Automatic page write operation: 1 to 32 bytes in 5ms; Page load timer; (9)End of write detection: Toggle bit; DATA polling; RDY/BUSY; (10)100,000 program/erase cycles; (11)100 year data retention.

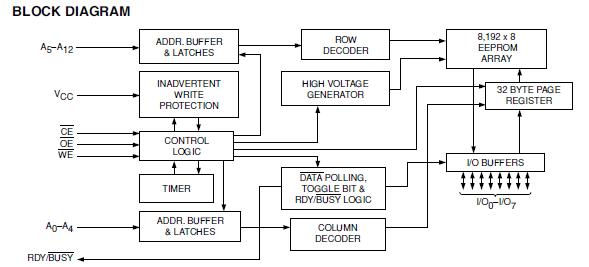

Diagrams
