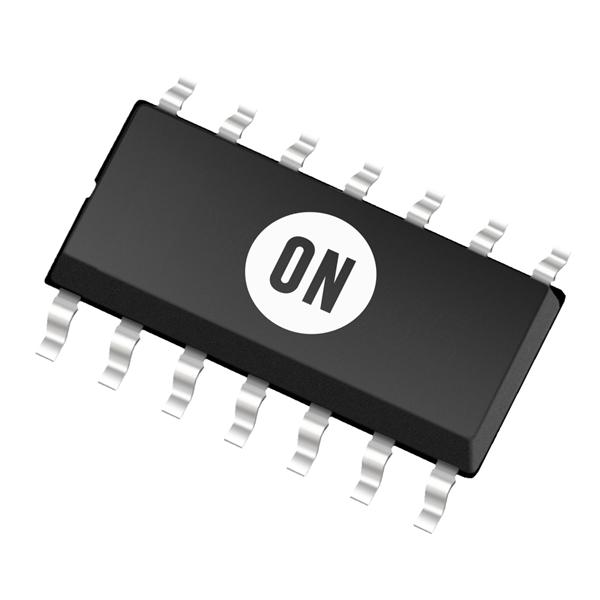

Product Summary
The CS289 is an air-core tachometer. CS289 is specifically designed for use with air-core meter movements. The IC has charge pump circuitry for frequency-to-voltage conversion, a shunt regulator for stable operation, a function generator, and sine and cosine amplifiers. The buffered sine and cosine outputs will typically sink or source 20mA.
Parametrics
CS289 absolute maximum ratings: (1)Supply Voltage (VCC): 20V; (2)Operating Temperature: -40℃ to +100℃; (3)Junction Temperature: -40℃ to 150℃; (4)Storage Temperature: -65℃ to +150℃.
Features
CS289 features: (1)Single Supply Operation; (2)On-Chip Regulation; (3)20mA Output Drive Capability.

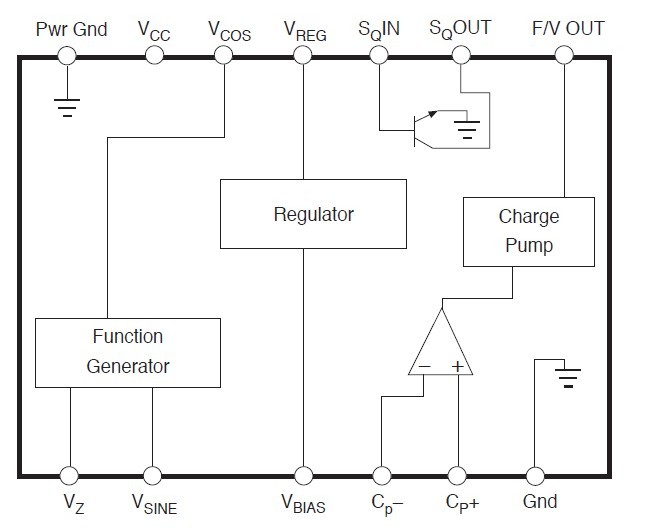

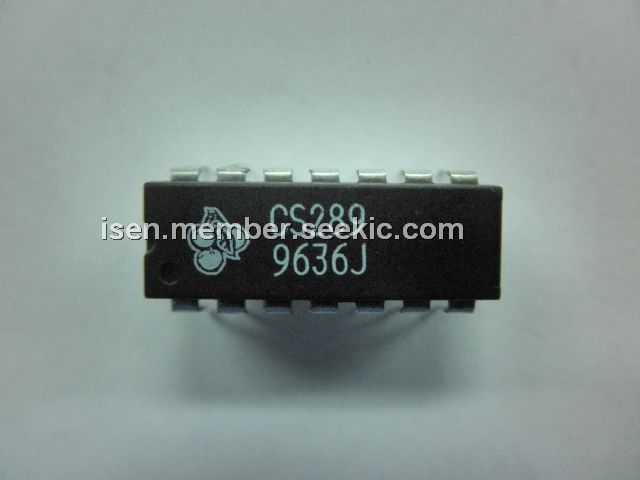

Diagrams
