Product Summary

The INA114BP is a precision instrumentation amplifier. It is a low cost, general purpose instrumentation amplifier offering excellent accuracy. The versatile 3-op amp design and small size of the INA114BP makes it ideal for a wide range of applications. A single external resistor of the INA114BP sets any gain from 1 to 10,000. Internal input protection can withstand up to ±40V without damage.

Parametrics

INA114BP absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Input Voltage Range: ±40V; (3)Output Short-Circuit (to ground): Continuous; (4)Operating Temperature: –40℃ to +125℃; (5)Storage Temperature: –40℃ to +125℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

INA114BP features: (1)Low offset voltage: 50mV max; (2)Low drift: 0.25mV/℃ max; (3)Low input bias current: 2nA max; (4)High common-mode rejection:115dB min; (5)Input over-voltage protection: ±40V; (6)Wide supply range: ±2.25 to ±18V; (7)Low quiescent current: 3mA max; (8)8-pin plastic and sol-16.

Diagrams

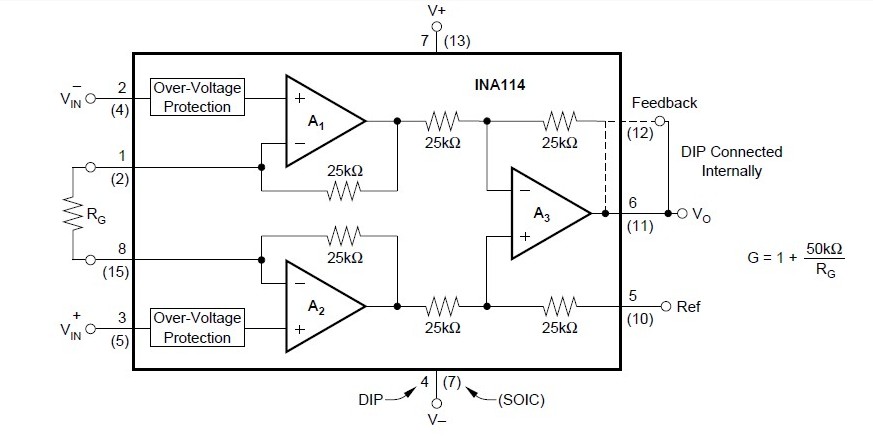

INA114BP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
INA114BP
INA114BP

Texas Instruments

Instrumentation Amplifiers Precision Instrumentation Amp

Data Sheet

0-1: $5.78
1-25: $5.62
25-100: $5.46
100-250: $5.03
