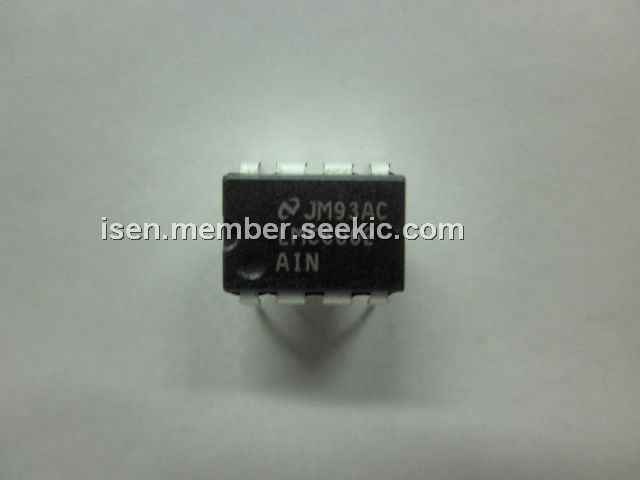

Product Summary
The LMC6062 is a precision dual low offset voltage, micropower operational amplifier, capable of precision single supply operation. Performance characteristics include ultra low input bias current, high voltage gain, rail-to-rail output swing, and an input common mode voltage range that includes ground. These features, plus its low power consumption, make the LMC6062 ideally suited for battery powered applications. The applications of the LMC6062 include Instrumentation amplifier, Photodiode and infrared detector preamplifier, Transducer amplifiers, Hand-held analytic instruments, Medical instrumentation, D/A converter and Charge amplifier for piezoelectric transducers.
Parametrics
LMC6062 absolute maximum ratings: (1)Differential Input Voltage: ±Supply Voltage; (2)Voltage at Input/Output Pin: (V+) +0.3V, (V-) -0.3V; (3)Supply Voltage (V+-V-): 16V; (4)Lead Temperature (Soldering, 10 sec.): 260℃; (5)Storage Temp. Range: -65 to +150℃; (6)Junction Temperature: 150℃; (7)ESD Tolerance: 2 kV; (8)Current at Input Pin: ±10 mA; (9)Current at Output Pin: ±30 mA; (10)Current at Power Supply Pin: 40 mA.
Features
LMC6062 features: (1)Low offset voltage 100 μV; (2)Ultra low supply current 16 μA/Amplifier; (3)Operates from 4.5V to 15V single supply; (4)Ultra low input bias current 10 fA; (5)Output swing within 10 mV of supply rail, 100k load; (6)Input common-mode range includes V; (7)High voltage gain 140 dB; (8)Improved latchup immunity.

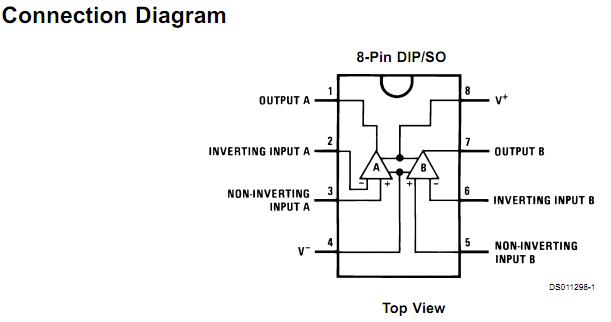

Diagrams
