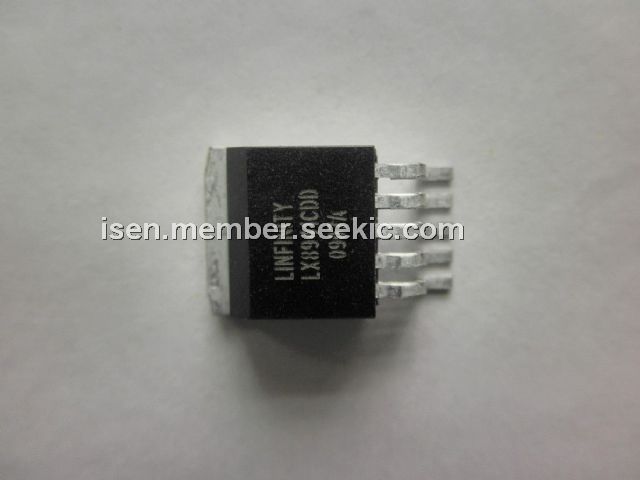

Product Summary
The LX8941CDD is an adjustable, low dropout regulator rated for more than 1A of output current. It can regulate with as low as 0.8V headroom between the input and output voltages, at 1A output current, thus minimizing power dissipation. In addition, the LX8941CDD can be used in applications where worst case supplies require a low input-output differential to maintain regulation. This feature makes it ideal for some processor applications that require 4V operation from a 5V supply. In addition, the LX8941CDD provides an on/off switch that reduces the IC quiescent current when activated, making it ideal for battery operated applications.
Parametrics
LX8941CDD absolute maximum ratings: (1)Input Voltage (VIN): 26V; (2)Operating Junction Temperature: 150℃; (3)Storage Temperature Range: -65 to 150℃; (4)Lead Temperature (Soldering, 10 seconds): 300℃.
Features
LX8941CDD features: (1)2% Internally Trimmed Output; (2)Output Current In Excess Of 1A; (3)Input-Output Differential Less Than 0.8V At 1A; (4)Reverse Battery Protection; (5)Short Circuit Protection; (6)Internal Thermal Overload Protection; (7)Available In 5-Lead Plastic TO-220 And Surface-Mount TO-263.

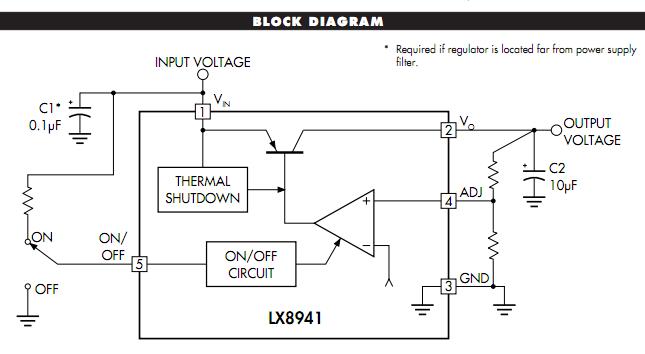

Diagrams
