Product Summary

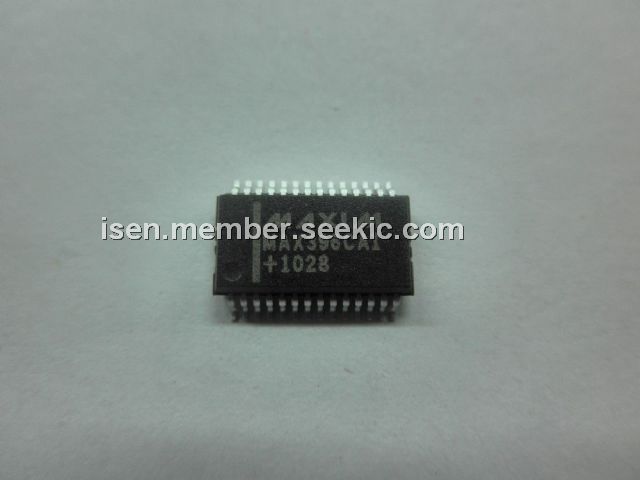

The MAX396CAI is a low-voltage, CMOS analog multiplexer (mux). It offers low on-resistance (100Ω max), which is matched to within 6Ω between switches and remains flat over the specified signal range (10Ω max). The MAX396CAI also offers low leakage over temperature (input off-leakage current less than 1nA at +85℃) and fast switching speeds (transition time less than 250ns). The applications of the MAX396CAI are Sample-and-Hold Circuits, Automatic Test Equipment, Avionics, Communications Systems, Battery-Operated Equipment, Audio Signal Routing, Low-Voltage Data Acquisition, Industrial Process Control Systems.

Parametrics

MAX396CAI absolute maximum ratings: (1)V+:-0.3V to +17V; (2)V-:+0.3V to -17V; (3)V+ to V-:-0.3V to +17V; (4)Voltage into Any Terminal:(V- - 2V) to (V+ + 2V) or 30mA(whichever occurs first); (5)Current into Any Terminal:±30mA ; (6)Peak Current into Any Terminal:±50mA; (7)Storage Temperature Range:-65℃ to +150℃; (8)Lead Temperature (soldering, 10sec):+300℃.

Features

MAX396CAI features: (1)Pin Compatible with MAX306/MAX307, DG406/DG407, DG506A/DG507A; (2)Single-Supply Operation (+2.7V to +16V); (3)Dual-Supply Operation (±2.7V to ±8V); (4)Low On-Resistance (100Ω max); (5)Guaranteed RON Match Between Channels (6Ω max); (6)Guaranteed RON Flatness over Specified Signal Range (10Ω max); (7)Guaranteed Low Charge Injection (5pC max); (8)Input Off-Leakage Current < 1nA at +85℃; (9)Output Off-Leakage Current < 2.5nA at +85℃; (10)Low Power Consumption < 10μW; (11)TTL/CMOS Compatible.

Diagrams

MAX396CAI circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX396CAI
MAX396CAI

Maxim Integrated Products

Multiplexer Switch ICs

Data Sheet

Negotiable
MAX396CAI-T
MAX396CAI-T

Maxim Integrated Products

Multiplexer Switch ICs

Data Sheet

Negotiable
MAX396CAI+T
MAX396CAI+T

Maxim Integrated Products

Multiplexer Switch ICs 16:1 Precision Analog MUX

Data Sheet

0-1666: $4.49
1666-2000: $4.49
MAX396CAI+
MAX396CAI+

Maxim Integrated Products

Multiplexer Switch ICs 16:1 Precision Analog MUX

Data Sheet

0-1: $11.01
1-25: $7.39
25-50: $5.36
50-100: $5.29
