Product Summary
The MC68HC711D3FNE2 is a ROM-based high-performance microcontroller. The MC68HC711D3FNE2 is derived from the same mask and features a high speed multiplexed bus capable of running at up to 3 MHz, and a fully static design that allows operation at frequency to dc.
Parametrics
MC68HC711D3FNE2 absolute maximum ratings: (1)Supply Voltage VDD: – 0.3 to + 7.0 V; (2)Input Voltage Vin: – 0.3 to + 7.0 V; (3)Operating Temperature Range: 0 to + 70 ℃; (4)Storage Temperature Range:– 55 to + 150 ℃; (5)Current Drain per Pin Excluding VDD and VSS: 25 mA.
Features
MC68HC711D3FNE2 features: (1)MC68HC11 CPU; (2)Power Saving STOP and WAIT Modes; (3)4 Kbytes of On-Chip ROM; (4)192 Bytes of On-Chip RAM (All Saved During Standby); (5)16-Bit Timer System; (6)8-Bit Pulse Accumulator; (7)Real-Time Interrupt Circuit; (8)Computer Operating Properly (COP) Watchdog System; (9)Synchronous Serial Peripheral Interface (SPI); (10)Asynchronous Nonreturn to Zero (NRZ) Serial Communications Interface (SCI); (11)26 Input/Output (I/O) Pins; (12)Available in a 44-Pin Plastic Leaded Chip Carrier (PLCC) and 40-Pin Dual In-Line Package (DIP).

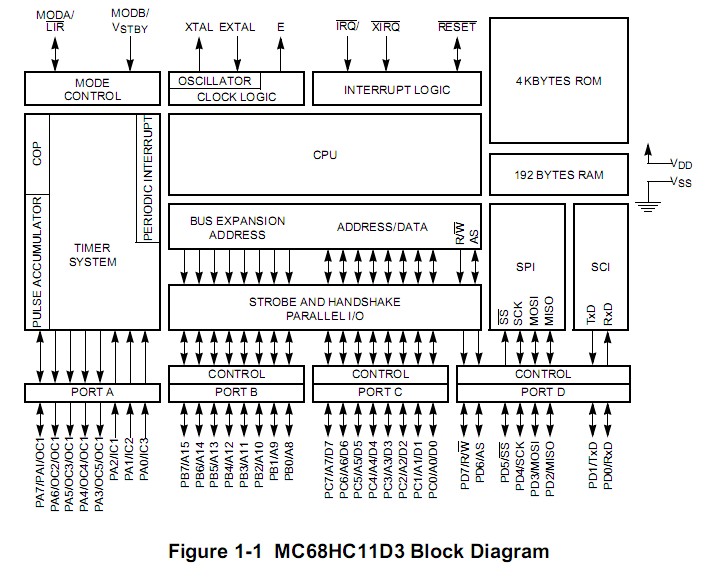

Diagrams
 |
