Product Summary
The AD711JN is a high speed, precision monolithic operational amplifier offering high performance at very modest prices. Its very low offset voltage and offset voltage drift are the results of advanced laser wafer trimming technology. These performance benefits allow the user to easily upgrade existing designs that use older precision BiFETs and, in many cases, bipolar op amps. The AD711JN can be used in Tape and Reel in Accordance with EIA-481A Standard.
Parametrics
AD711JN absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: 500 mW; (3)Input Voltage: ±18 V; (4)Differential Input Voltage: +VS and –VS; (5)Storage Temperature Range (Q, H): –65℃ to +150℃; (6)Storage Temperature Range (N): –65℃ to +125℃; (7)Operating Temperature Range: 0℃ to +70℃; (8)Lead Temperature Range (Soldering 60 sec): +300℃.
Features
AD711JN features: (1)Enhanced Replacements for LF411 and TL081; (2)Settles to 60.01% in 1.0 ms; (3)16 V/ms min Slew Rate; (4)3 MHz min Unity Gain Bandwidth.

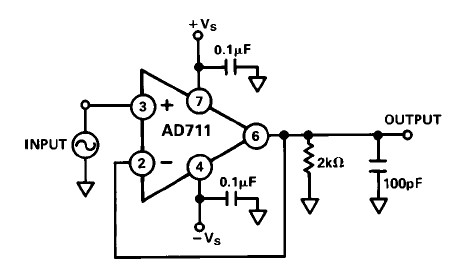

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD711JN |
Analog Devices Inc |
IC PREC OPAMP BIFET HS 8-DIP |
Data Sheet |
|
|
||||||||||||||||||||
 |
AD711JNZ |
|
IC OPAMP BIFET PREC 25MA 8DIP |
Data Sheet |
|
|
||||||||||||||||||||
