Product Summary

The UCA2E470MHD is a aluminum electrolytic capacitor.

Parametrics

General specifications: (1)Category Temperature Range:–25℃ to +105℃; (2)Rated Voltage Range:160V to 450V; (3)Rated Capacitance Range:6.8μF to 220μF; (4)Capacitance Tolerance:± 20% at 120Hz, 20℃; (5)Leakage Current: After 1 minutes’application of rated voltage, leakage current is not more than 0.04CV+100 (μA).

Features

Features: (1)High ripple current and Long Life product withstanding load life of 12000 hours(10000 hours for φD=10) at +105℃; (2)Suited for ballast application.

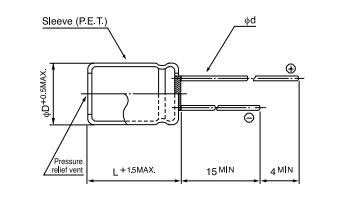

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
UCA2E470MHD
UCA2E470MHD

Nichicon

Aluminum Electrolytic Capacitors - Leaded 250volts 47uF 12.5X25 20%

Data Sheet

0-1: $0.55
1-10: $0.49
10-100: $0.40
100-500: $0.35
UCA2E470MHD6
UCA2E470MHD6

Nichicon

Aluminum Electrolytic Capacitors - Leaded 250volts 47uF 16X20 20%

Data Sheet

0-1: $0.50
1-10: $0.40
10-100: $0.30
100-500: $0.23
