Product Summary

The V23072-C1061-A408 is a Mini power relay. The typical applications of the device include Lamp control circuits, Indicator control circuits, Sunroof motors, Window motors, Immobilizers, 42 V applications and Central doorlock etc.

Parametrics

V23072-C1061-A408 absolute maximum ratings: (1)Rated voltage: 12V; (2)Rated current at 85℃: 10A; (3)Contact material: AnNiO.15; (4)Max. switching current: 60A; (5)Min. recommended load: 1A at 5V; (6)Voltage drop at 10 A (initial) for NC/NO contacts: typ 50mV, 300mV max; (7)Mechanical endurance (without load): >107 operations; (8)Electrical endurance (example of resistive load): >2×105 operations 10A, 13.5A.

Features

V23072-C1061-A408 features: (1)60% smaller volume than power relay K; (2)High switching capacity; (3)Small footprint, minimal space requirements.

Diagrams

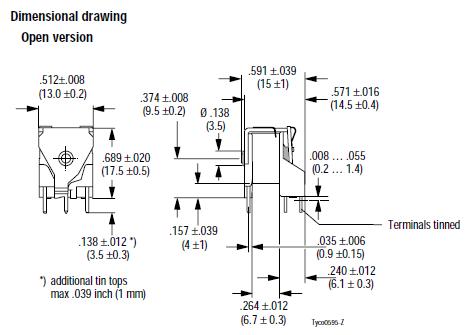

V23072-C1061-A408 dimensions
