Product Summary

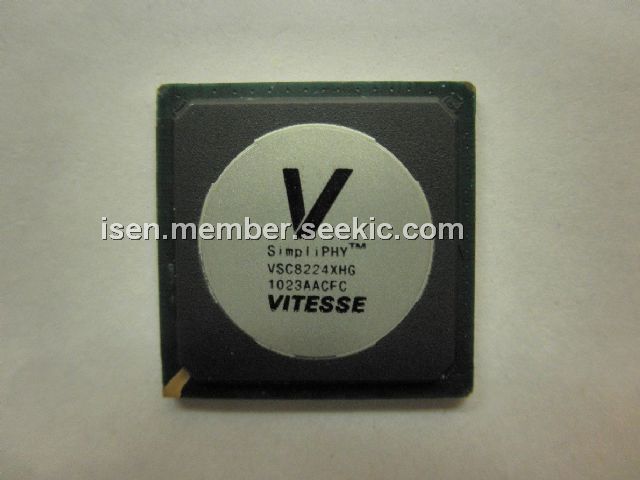

The VSC8224XHG is a quad port Gigabit Ethernet transceiver and is ideal for multi-port switch and router applications. In 1000BASE-T mode, the VSC8224XHG’s power consumption is 30% lower than the next best competitor. In RGMII-to-SerDes applications, its best-inclass power consumption of 145mW per port is more than 40% lower than that of competitors. The VSC8224XHG’s compact 19mm x 19mm BGA package makes it ideal for high-density switch applications. The applications of the VSC8224XHG include High Density 10/100/100BASE-T and 1000BASE-X LAN & Gigabit Ethernet-based SAN, NAS, and MAN Systems MAN Switches and Routers, High Performance Workstations and Multi-Port Server NICs, Workgroup LAN Switches and Routers and Multi-Port Fiber to Copper Media Converters.
Parametrics
VSC8224XHG absolute maximum ratings: (1)PD: <640 mW; (2)Serial Data Rate: 1.25 Gbps; (3)VDD I/O: 3.3, 2.5, 1.5 V; (4)VDDA: 3.3 V; (5)VDDDIG: 1.2 V; (6)FTOL (REFERENCE): 25 MHz.
Features
VSC8224XHG features: (1)Lowest Power Consumption in the Industry at Less Than 640m W/port (1000BASE-T mode); (2)Patented, Low EMI Line Driver with Integrated Line Side Termination Resistors; (3)Supports RGMII v1.3 (2.5V & 3.3V) & v2.0 (1.5V HSTL); (4)User-programmable RGMII Timing Compensation; (5)High Performance 1.25 Gbps SerDes; (6)Auto-media Sense Detects and Configures to Support Fiber or Copper Media on a Per Port Basis; (7)User-configurable Copper or Fiber Link Selection Preference with Programmable Interrupt and Signal Detect I/O Pins on Each Port; (8)Compliant with IEEE 802.3 (10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X)Specifications; (9)>10kB Jumbo Frame Support with Programmable Synchronization FIFOs; (10)Five Direct Drive LEDs with On-chip Filtering; (11)Serial LED Interface Option; (12)VeriPHY Cable Diagnostics Software Suite; (13)Full Suite of BIST, MAC, and Far-end Loopback Modes.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VSC8224XHG |
IC PHY 10/100/1000 260-HS-PBGA |
Data Sheet |
|
|
||||||||||
