Product Summary

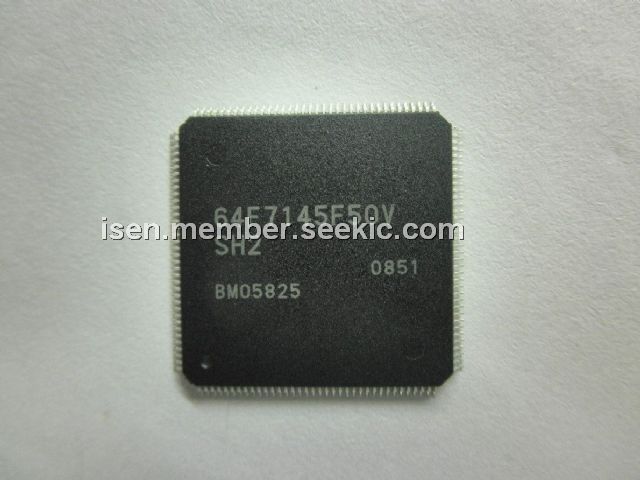

The 64F7145F50V is a 32-Bit RISC microcomputer which belongs to SuperHTM RISC engine Family/SH7144 Series.
Parametrics
64F7145F50V absolute maximum ratings: (1)Power supply voltage VCC:–0.3 to +4.3 V; (2)Input voltage, All pins other than analog input pins:–0.3 to VCC +0.3 V; (3)Input voltage, analog input pins: –0.3 to AVCC +0.3 V; (4)Analog supply voltage: –0.3 to +4.3 V; (5)Analog reference voltage (Only in SH7145): –0.3 to AVCC +0.3 V; (6)Analog input voltage: –0.3 to AVCC +0.3 V; (7)Operating temperature, Regular specifications: –20 to +75℃; (8)Operating temperature, Wide range specifications:–40 to +85℃; (9)Operating temperature(programming or erasing flash memory): –20 to +75℃; (10)Storage temperature:–55 to +125℃.
Features
64F7145F50V features: (1)Central processing unit with an internal 32-bit RISC (Reduced Instruction Set Computer) architecture; (2)Various peripheral functions; (3)Direct memory access controller (DMAC); (4)Data transfer controller (DTC); (5)Multifunction timer/pulse unit (MTU); (6)Compare match timer (CMT); (7)Watchdog timer (WDT); (8)Asynchronous or clocked synchronous serial communication interface (SCI); (9)I2C bus interface (IIC); (10)10-bit A/D converter; (11)Clock pulse generator; (12)User break controller (UBC); (13)User debugging interface (H-UDI); (14)Advanced user debugger (AUD).

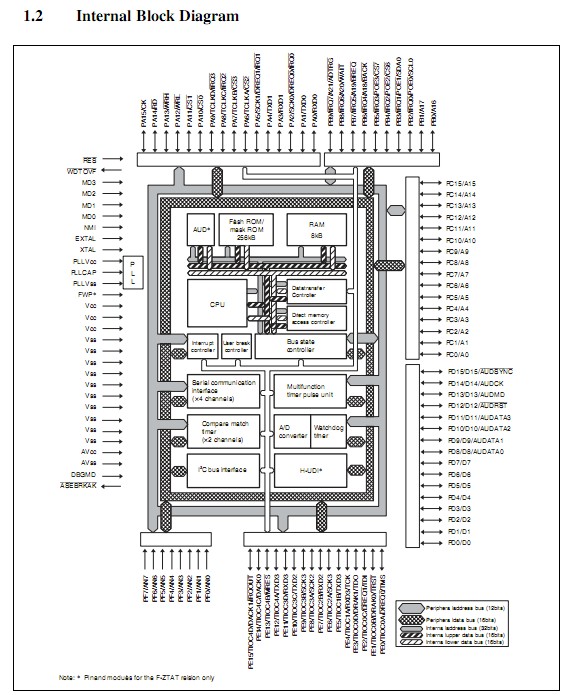

Diagrams
