Product Summary

The AD620AN is a low cost, high accuracy instrumentation amplifier that requires only one external resistor to set gains of 1 to 1000. Furthermore, the AD620AN features 8-lead SOIC and DIP packaging that is smaller than discrete designs, and offers lower power (only 1.3 mA max supply current), making it a good fit for battery powered, portable (or remote) applications. The AD620AN, with its high accuracy of 40 ppm maximum nonlinearity, low offset voltage of 50 mV max and offset drift of 0.6 mV/℃ max, is ideal for use in precision data acquisition systems, such as weigh scales and transducer interfaces. Furthermore, the low noise, low input bias current, and low power of the AD620AN make it well suited for medical applications such as ECG and noninvasive blood pressure monitors.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Internal Power Dissipation2: 650 mW; (3)Input Voltage (Common Mode): ±VS; (4)Differential Input Voltage: ±25V; (5)Output Short Circuit Duration: Indefinite; (6)Storage Temperature Range (Q): –65℃ to +150℃; (7)Storage Temperature Range (N, R): –65℃ to +125℃; (8)Operating Temperature Range AD620 (A, B): –40℃ to +85℃; (9)Lead Temperature Range (Soldering 10 seconds): +300℃.

Features

Features: (1)easy to use; (2)gain set with one external resistor (gain range 1 to 1000); (3)wide power supply range (±2.3V to ±18V); (4)higher performance than three Op Amp IA designs; (5)available in 8-lead DIP and SOIC packaging; (6)low power, 1.3 mA max supply current; (7)excellent DC performance; (8)50 μV max, input offset voltage; (9)0.6 μV/℃ max, input offset drift; (10)1.0 nA max, input bias current; (11)100 dB min common-mode rejection ratio (G = 10); (12)low noise; (13)9 nV/Hz, at 1 kHz, input voltage noise; (14)0.28 μV p-p Noise (0.1 Hz to 10 Hz); (15)excellent ac specifications; (16)120 kHz bandwidth (G = 100); (17)15 μs settling time to 0.01%.

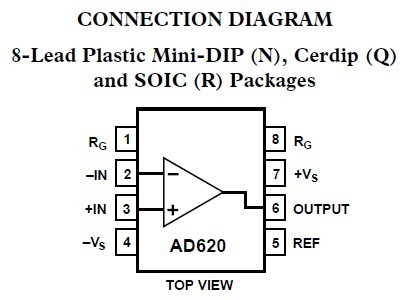

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD620AN
AD620AN

IC AMP INST LP LN 18MA 8DIP
Data Sheet
0-50: $4.64
AD620ANZ
AD620ANZ

IC AMP INST LP LN 18MA 8DIP
Data Sheet
0-1: $4.76
1-10: $4.29
10-25: $3.91
25-100: $3.53
100-250: $3.24
250-500: $2.95
500-1000: $2.57
1000-2500: $2.54
