Product Summary

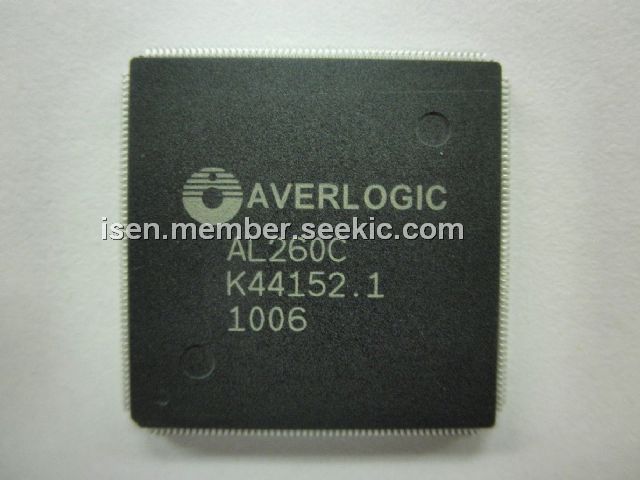

The AL260C Video Enhancement Processor is a highly integration Video Enhancement Processor which supports video input with multiple video formats then output with De-interlacing and Scaling effects. The AL260C can be used for most video conversion and processing applications. It is equipped with a high quality scaling engine that automatically maintains full screen output display, regardless of the resolution of the incoming signals.

Parametrics

AL260C maximum ratings: (1)Frame Rate: 120 Hz; (2)Input Channels: 1; (3)Input Formats: ITU-R.BT.656/ITU-R.BT.601; (4)Output Channels: 2; (5)Output Formats: Analog RGB, 24/48-bit RGB; (6)Package: PQFP; (7)Pins: 208; (8)PIP: N; (9)Resolution: 1280x1024; (10)Temp range: 0 to 70 ℃; (11)VCC Max: 3.3 V; (12)VCC Min: 2.5 V; (13)Video Clock: 110 (Max) MHz.

Features

AL260C features: (1)Film Detection with Inverse 3:2/2:2 Pull Down supported; (2)Advanced Motion Adaptive De-interlacing; (3)Keystone Correction for Front-Projection Systems; (4)NTSC/PAL supported; (5)Output resolution up to 1280x1024 @60Hz ; (6)Video interface ITU-R 601/656(8/16bit), YUV422 supported; (7)Analog Non-interlaced RGB/YPbPr and Digital RGB 24bit outputs supported; (8)Film Detection with Inverse 3:2 & 2:2 pull down supported; (9)Frame Rate Conversion(FRC) from 50Hz up to 120Hz; (10)Available in 208-pin PQFP.

Diagrams

AL260C application diagram
