Product Summary

The IS62C1024L-35TI is a low power,131,072-word by It is fabricated using ISSI’s high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices. The IS62C1024L-35TI is available in 32-pin plastic SOP and TSOP (type 1) packages.

Parametrics

IS62C1024L-35TI absolute maximum ratings: (1)VTERM, Terminal Voltage with Respect to GND: –0.5 to +7.0 V; (2)TSTG, Storage Temperature: –65 to +150℃; (3)PT, Power Dissipation: 1.5 W; (4)IOUT, DC Output Current (LOW): 20 mA.

Features

IS62C1024L-35TI features: (1)High-speed access time: 35, 70 ns; (2)?Low active power: 450 mW (typical); (3)Low standby power: 150 μW (typical) CMOS standby; (4)Output Enable (OE) and two Chip Enable (CE1 and CE2) inputs for ease in applications; (5)Fully static operation: no clock or refresh required; (6)TTL compatible inputs and outputs; (7)Single 5V (±10%) power supply.

Diagrams

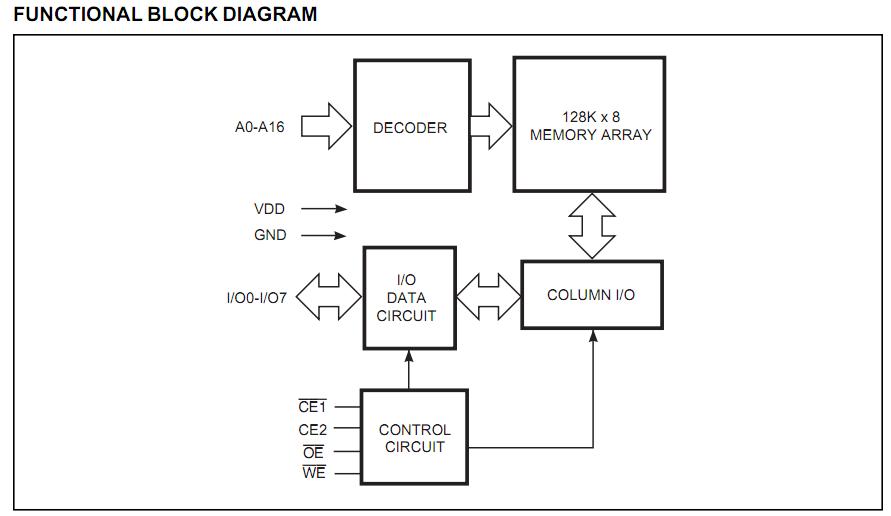

IS62C1024L-35TI functional block diagram
