Product Summary

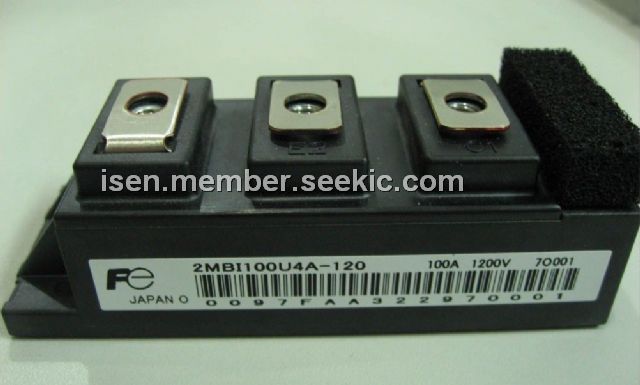

The device name of 2MBI100U4A-120 is IGBT MODULE. This specification is applied to IGBT-Module named 2MBI100U4A-120. The module should be stored at a standard temperature of 5 to 35oC and humidity of 45 to 75% . Store modules in a place with few temperature changes in order to avoid condensation on the module surface.
Parametrics
Absolute Maximum Ratings( at Tc= 25oC unless otherwise specified ): (1)Collector-Emitter voltage, VCES: 1200V; (2)Gate-Emitter voltage, CES: ±20V; (3)Collector current, Ic: 150A, when the operation condition is Continuous and Tc=25℃; (4)Collector current, Ic: 100A, when the operation condition is Continuous and Tc=80℃; (5)Collector current, Icp: 300A, when the operation condition is 1ms and Tc=25℃; (6)Collector current, Icp: 200A, when the operation condition is 1ms and Tc=80℃; (7)Collector current, -Ic: 100A; (8)Collector current, -Ic pulse: 200A, when the operation condition is 1ms; (9)Collector Power Dissipation, Pc: 540W, when the operation condition is 1DEVICE; (10)Junction temperature, Tj: +150℃; (11)Storage temperature, Tstg: -40 to +125℃; (12)Isolation voltage, between terminal and copper base, Viso: 2500 VAC, when the operation condition is AC : 1min.
Features
Features: (1)Avoid exposure to corrosive gases and dust; (2)Avoid excessive external force on the module; (3)Store modules with unprocessed terminals; (4)Do not drop or otherwise shock the modules when transporting.
