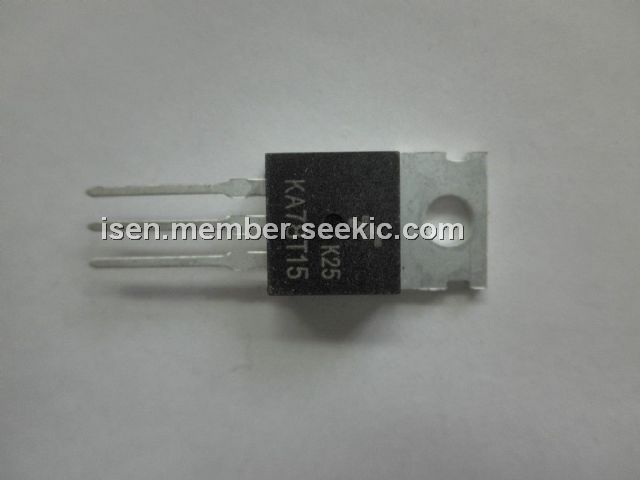

Product Summary
The KA78T15 is a 3-Terminal Positive Voltage Regulator. The device is capable of driving loads in excess of 3.0 A.
Parametrics
KA78T15 absolute maximum ratings: (1)Input Voltage,VI: 35V for VO = 5V to 12V; 40V for VO = 15V; (2)Thermal Resistance, Junction to Air, Tc = +25℃, RθJA: 65℃/W; (3)Thermal Resistance ,Junction to Case, RθJC: 2.5℃/W; (4)Operating Junction Temperature Range, TJ: 0 to +150℃; (5)Storage Temperature Range, TSTG: -65 to +150℃.
Features
KA78T15 features: (1)Output current in excess of 3.0A ; (2)Output transistor safe operating area compensation; (3)Power dissipation :25W; (4)Internal short circuit current limiting; (5)Internal thermal overload protection; (6)Output voltage offered in 4% tolerance; (7)No external components required; (8)Output voltage of 5, 12 and 15V.

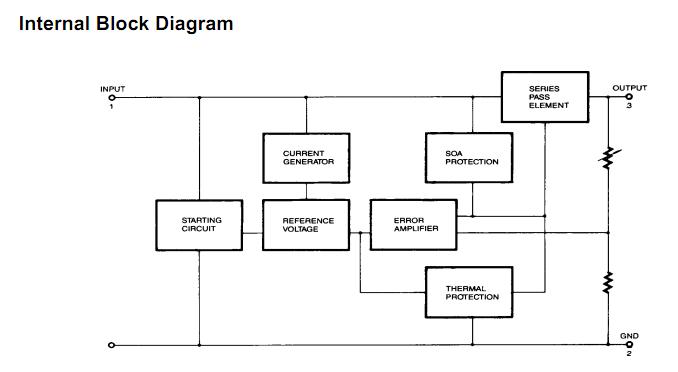

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 KA78T15 |
Fairchild Semiconductor |
Linear Regulators - Standard Positive Voltage Reg 3Terminal 3a |
Data Sheet |
