Product Summary

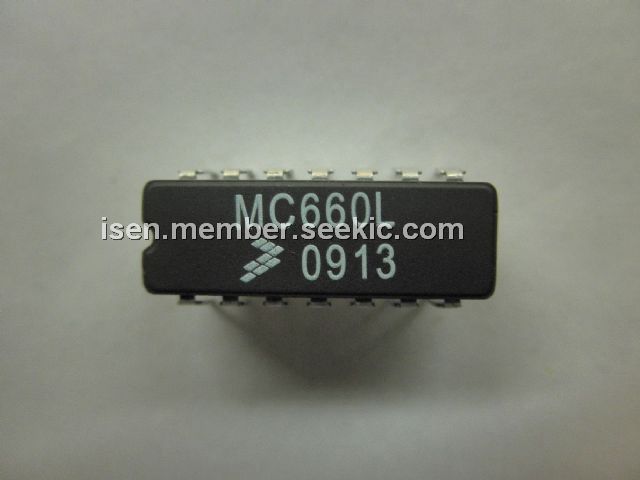

The MC660L is a kind of MHTL integrated circuit which is designed to meet the requirements of industrial applications because of the outstanding noise immunity. It provides error-free operation in high noise environments far beyond the torlerance of other intergrated circuit families.
Parametrics
MC660L absolute maximum ratings: (1)Power supply voltage: 18V continuous; pulsed, 1.0 s 20V; (2)Input voltage: -1.0 to 18 V; (3)Output current: 30 mA; (4)Input reverse current@18V: 0.5 mA; (5)Operating temperature: -30 to +75 ℃; (6)Storage temperature: -55 to +125 ℃.
Features
MC660L charanteristics: (1)Expandable dual 4-input NAND Gate; (2)Loading factor each output: 10; (3)Propagation delay ns typ: 110; (4)Power dissipation: 88/26 mW; (5)Case: 632,646.

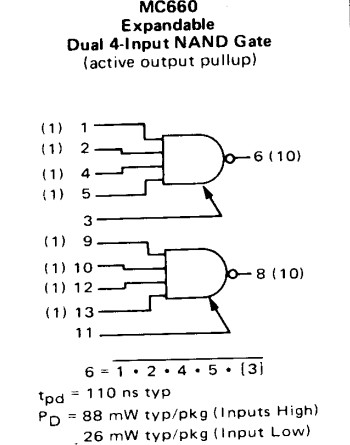

Diagrams
 |
