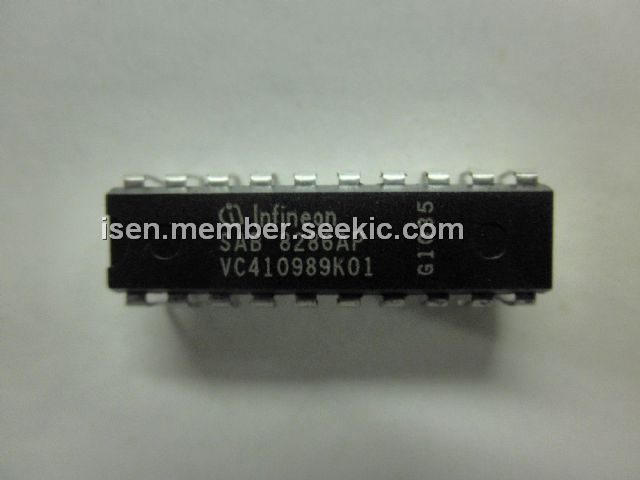

Product Summary
The SAB8286AP is an 8-bit transceiver with high impedance outputs. With T active HIGH and OE active LOW, data at the A0-A7 pins is driven onto the B0-B7 pins. With T inactive LOW and OE active LOW, data at the B0-B7 pins is driven onto the A0-A7 pins. No output low glitching will occur whenever the SAB8286AP is entering or leaving the high impedance state.
Parametrics
SAB8286AP absolute maximum ratings: (1)temperature under bias: 0 to 70℃; (2)storage temperature: -65 to 150℃; (3)all output and supply voltages: -0.5 to 7V; (4)all input voltages: -1.0 to 5.5V; (5)power dissipation: 1W.
Features
SAB8286AP features: (1)fully compatible with SAB 8286/SAB 8287; (2)40% less power supply current than standard SAB 8286/SAB 8287; (3)high output drive capability for driving system data bus; (4)fully parallel 8-bit transceivers; (5)3-state outputs; (6)20-pin package; (7)no output low noise when entering or leaving high impedance state.

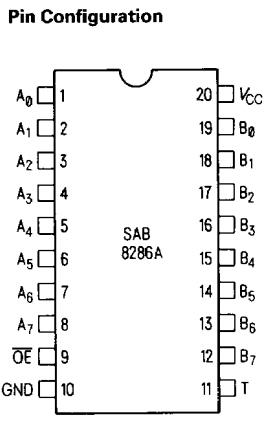

Diagrams
 |
