Product Summary
The SP8M4 is a transistor suitable for Power switching, DC / DC converter.
Parametrics
SP8M4 absolute maximum ratings: (1)Drain-source voltage, VDSS: 30V; (2)Gate-source voltage, VGSS: 20V; (3)Drain current, continuous, ID: ±9.0A; pulsed, IDP: ±36A; (4)source current, continuous, IS: 1.6A; pulsed, ISP: 36A; (5)Total power dissipation, PD: 2W; (6)Channel temperature, Tch: 150℃; (7)Storage temperature, Tstg: -55 to 150℃.
Features

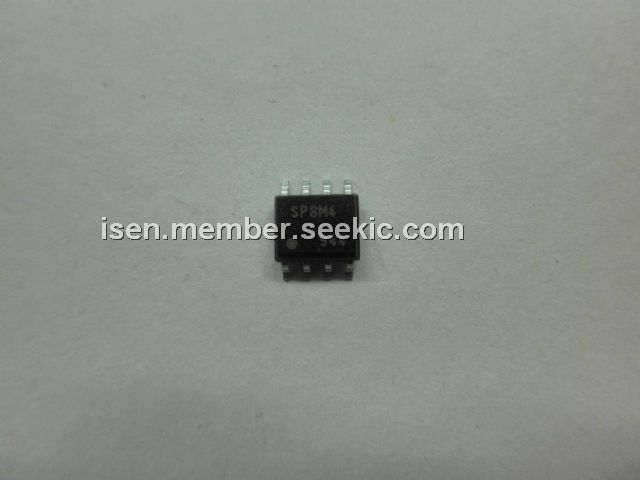

SP8M4 features: (1)Low on-resistance; (2)Built-in G-S Protection Diode; (3)Small and Surface Mount Package (SOP8).

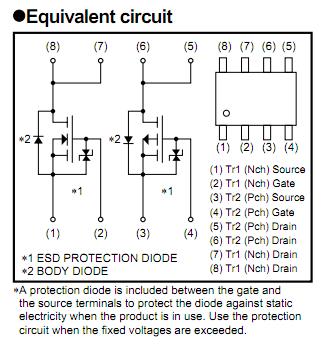

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SP8M4TB |
ROHM Semiconductor |
MOSFET TRANS MOSFET N/PCH 30V 9A/7A 8PIN |
Data Sheet |
|
|
||||||
 |
SP8M4FU6TB |
ROHM Semiconductor |
MOSFET SWITCHING Nch/Pch 4V |
Data Sheet |
|
|
||||||
|
SP8M4 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
