LM1951T

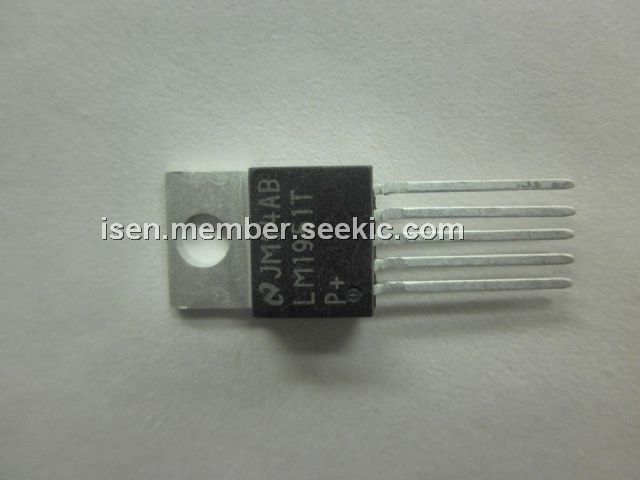

PNP switch, TO220-5, 1A, 1H, 4.5V to 26V, LM1951T

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: LM1951T

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-06

From Other Seller

Part Number:LM1951T
US $0.10 - 0.50
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

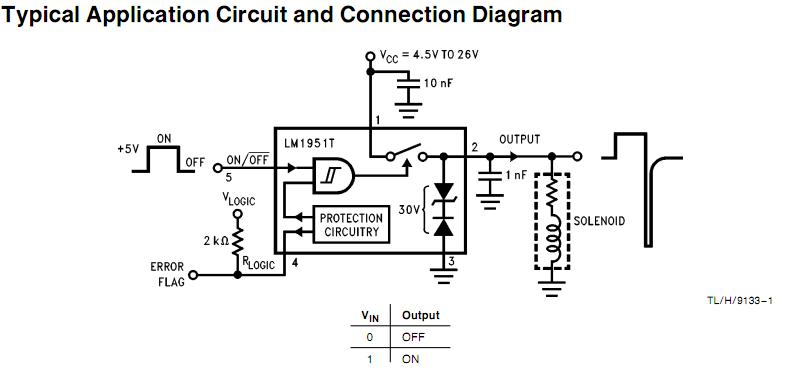

Product Summary

The LM1951T is a high current, high voltage, high side (PNP) switch with a built-in error detection circuit. The LM1951T is guaranteed to deliver 1 Amp output current and is capable of withstanding up to g85V transients. The built-in error detection provides an error flag output under the following fault conditions: output short to ground or supply, open load, current limit, overvoltage or thermal shut-down. The LM1951T will drive all types of resistive or inductive loads. The output has a built-in negative voltage clamp to provide a quick energy discharge path for inductive loads. The LM1951T features TTL and CMOS compatible logic input with hysteresis. Switching times, both turn on and turn off, are 2 ms(Cload k 0.005 mF). In addition, its quiescent current in the OFF state is typically less than 0.1 mA at room temperature and less than 10 mA over the entire operating temperature and voltage range. The LM1951T features make it well suited for industrial and automotive applications.

Parametrics

LM1951T absolute maximum ratings: (1)Supply Voltage, Operational Voltage: 26 VDC; Sustained Voltage: -40 VDC ≧ VCC ≤ 85 VDC; Transient Voltage Protection: ±85V; (2)Load Inductance: 1H; (3)Operating Temperature Range (TA): -40 to 125℃; (4)Storage Temperature Range: -65 to 150℃; (5)Lead Temperature (Soldering, 10 sec.): 260℃; (6)ESD Tolerance: 2000V.

Features

LM1951T features: (1)0.1 mA typical quiescent current (OFF state); (2)1 Amp output current guaranteed; (3)±85V transient protection; (4)Reverse voltage protection; (5)Negative output voltage clamp; (6)Error flag output; (7)Internal overvoltage shutdown; (8)Internal thermal shutdown; (9)Short circuit proof; (10)High speed switching (up to 50 kHz); (11)Inductive or resistive loads; (12)Low ON resistance (1X maximum); (13)TTL, CMOS compatible input with hysteresis; (14)Plastic TO-220 5-lead package; (15)ESD protected; (16)4.5V to 26V operation.
