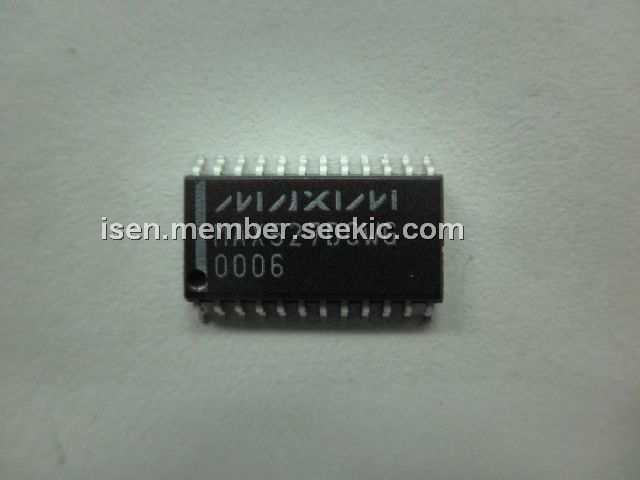

Product Summary

The MAX527DCWG is a Galibrated Quad 12-Bit Voltage-Output D/A Converter. It contains four 12-bit, voltage-output digital-to-analog converters. The MAX527DCWG operates with ±5V power supplies, while the MAX526 utilizes -5V and +12V to +15V supplies. The device features double-buffered interface logic with a 12-bit input register and a 12-bit DAC register. The applications of the MAX527DCWG are minimum component count analog systems, digitial offset/gian adjustment, arbitrary function generators, industrial process controls, automatic test equipment.

Parametrics

MAX527DCWG absolute maximum ratings: (1)VDD to AGND or DGND:-0.3V, +17V; (2)VSS to AGND or DGND:-7V to 0.3V; (3)digital input voltage to AGND or DGND:0.3V, VDD+0.3V; (4)VREF to AGND or DGND:-0.3V, VDD+0.3V; (5)VOUT to AGND or DGND:VDD, VSS; (6)maximum power dissipation:50mA; (7)storage temperature range:-65 to +150℃; (8)lead temperature:+300℃.

Features

MAX527DCWG features: (1)reference input range includes ground; (2)full 12-bit performance without adjustments; (3)1 LSB total unadjusted error; (4)buffered voltage outputs; (5)double-buffered digital inputs; (6)microprocessor and TTL/CMOS compatible; (7)±5V supply operation.

Diagrams

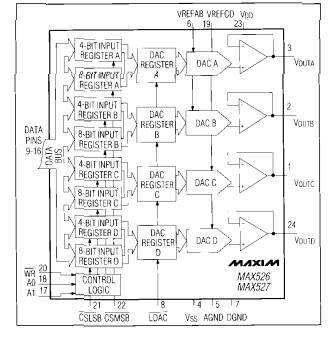

MAX527DCWG block diagram
