Product Summary

The LM337D2T is an adjustable 3–terminal negative voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of –1.2 V to –37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, the LM337D2T employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow–out proof. The device serves a wide variety of applications including local, on card regulation. The LM337D2T can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM337 can be used as a precision current regulator.

Parametrics

LM337D2T absolute maximum ratings: (1)Input–Output Voltage Differential, VI–VO: 40 Vdc; (2)Operating Junction Temperature Range, TJ: –40 to +125℃; (3)Storage Temperature Range, Tstg: –65 to +150℃.

Features

LM337D2T features: (1)Output Current in Excess of 1.5 A; (2)Output Adjustable between –1.2 V and –37 V; (3)Internal Thermal Overload Protection; (4)Internal Short Circuit Current Limiting Constant with Temperature; (5)Output Transistor Safe–Area Compensation; (6)Floating Operation for High Voltage Applications; (7)Eliminates Stocking many Fixed Voltages; (8)Available in Surface Mount D2PAK and Standard 3–Lead Transistor Package.

Diagrams

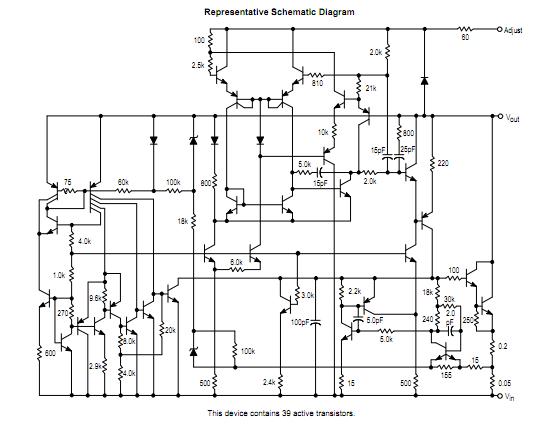

LM337D2T Representative Schematic Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

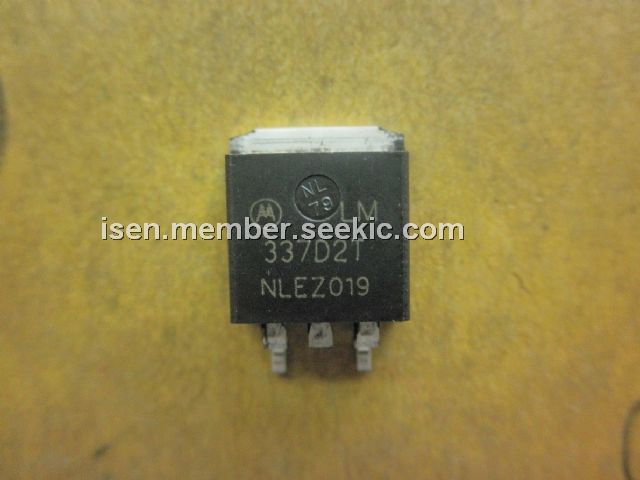

LM337D2T
LM337D2T
ON Semiconductor
Linear Regulators - Standard 1.5A -1.2 to -37V
Data Sheet
Negotiable
LM337D2TG
LM337D2TG
ON Semiconductor
Linear Regulators - Standard 1.5A -1.2 to -37V ADJ Negative
Data Sheet
0-1: $0.79
1-25: $0.64
25-100: $0.56
100-500: $0.43
LM337D2TR4G
LM337D2TR4G
ON Semiconductor
Linear Regulators - Standard 1.5A -1.2 to -37V ADJ Negative
Data Sheet
0-800: $0.43
800-820: $0.43
820-1000: $0.34
1000-2000: $0.31
LM337D2TR4
LM337D2TR4
ON Semiconductor
Linear Regulators - Standard 1.5A -1.2 to -37V
Data Sheet
Negotiable
